Product Name : Rubber Wheel
Product No : 03
  • Cushion Tread Hard Core ( HSR ).
  • All Soft Rubber ( SR ).
  • All Hard Rubber ( HR ).
  • No-Marking Maximum Floor Protection.
  • Roller Bearing Type With Bearing W/0 Bushing.
Inquiry
DIAMETER
INCH
(m/m)		 TREADWIDTH
INCH
(m/m)		 BEARING TYPE LOAD CAPACITY
LBS( kgs )		 HUB LENHTH
(m/m)		 BORE SIZE
(m/m)		 WHEEL NUMBER
SR HR HSR SR HR
1
( 25 )		 15/32
( 12 )		 Plain 17.6 (8) 　 13 4.7 　 1012 SR 　
11/4
( 32 )		 17/32
( 14 )		 Plain 26.5 (12) 　 16 5 　 1414 SR 　

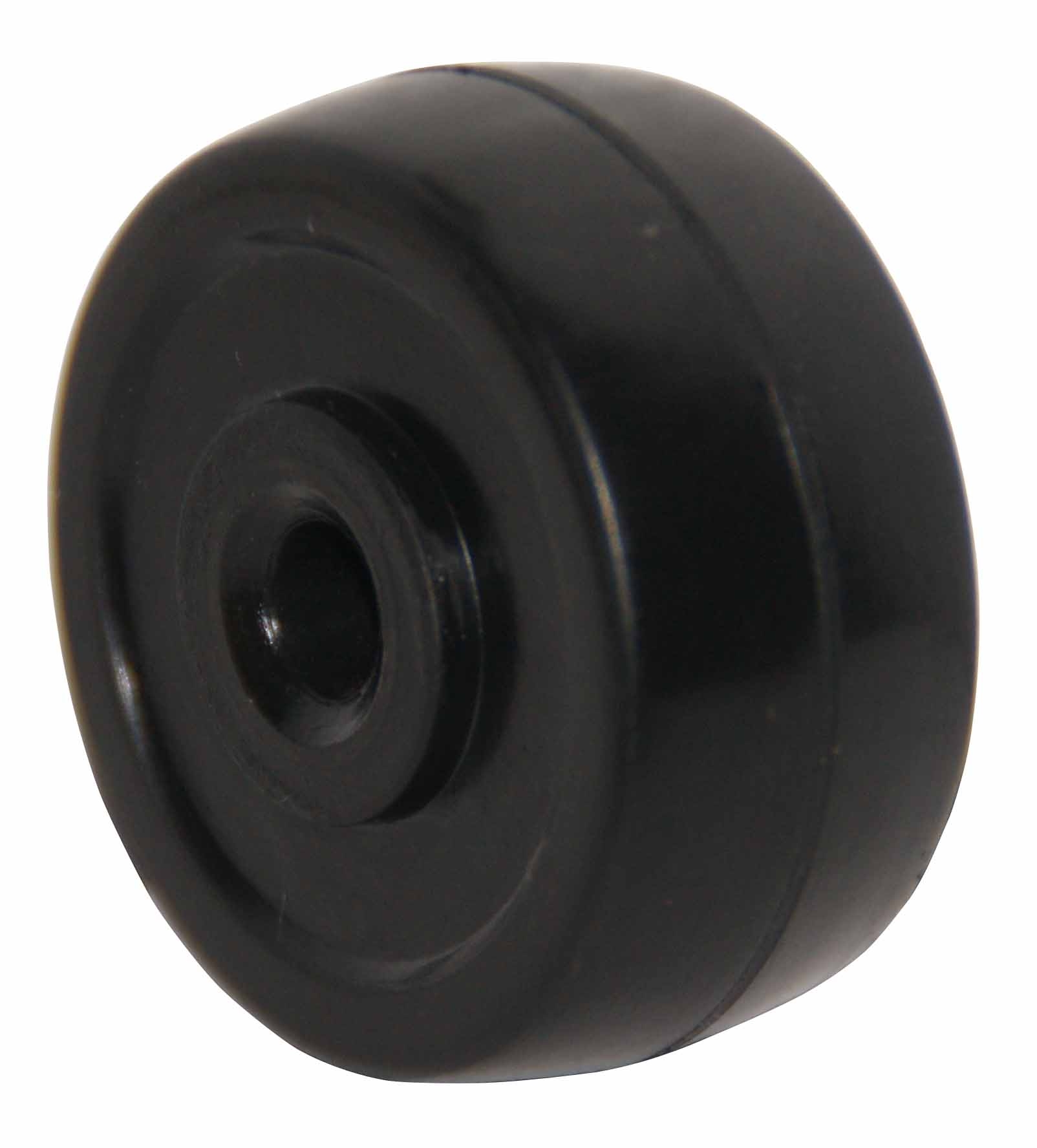

11/2
( 38 )		 23/32
( 18 )		 Plain 44 ( 20 ) 55 ( 25 ) 20 6 　 1518 SR 1518 HR

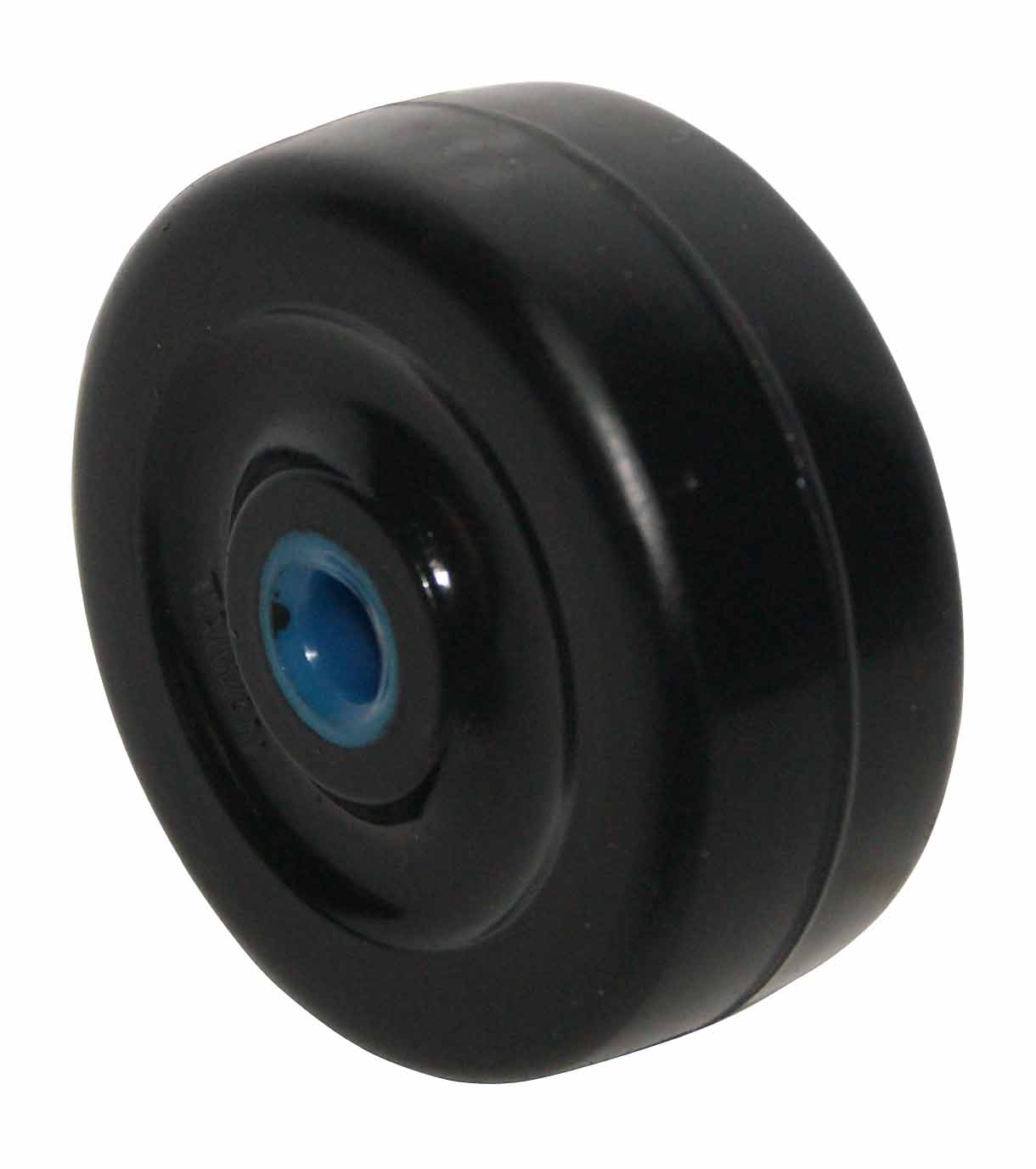

2
( 50 )		 13/16
( 21 )		 Plain 66 ( 30 ) 80 ( 36 ) 24 6.5 2020 HSR 2020 SR 2020 HR
2
( 50 )		 15/16
( 24 )		 Plain 88 ( 40 ) 88 ( 40 ) 27 6.5 2024 HSR 2024 SR 2024 HR
2
( 50 )		 11/8
( 28 )		 Plain 88 ( 40 ) 88 ( 40 ) 29 8.3 2028 HSR 　 　
21/2
( 63 )		 13/16
( 20 )		 Plain 66 ( 30 ) 80 ( 36 ) 24 6.5 2520 HSR 2520 SR 2520 HR
21/2
( 63 )		 1

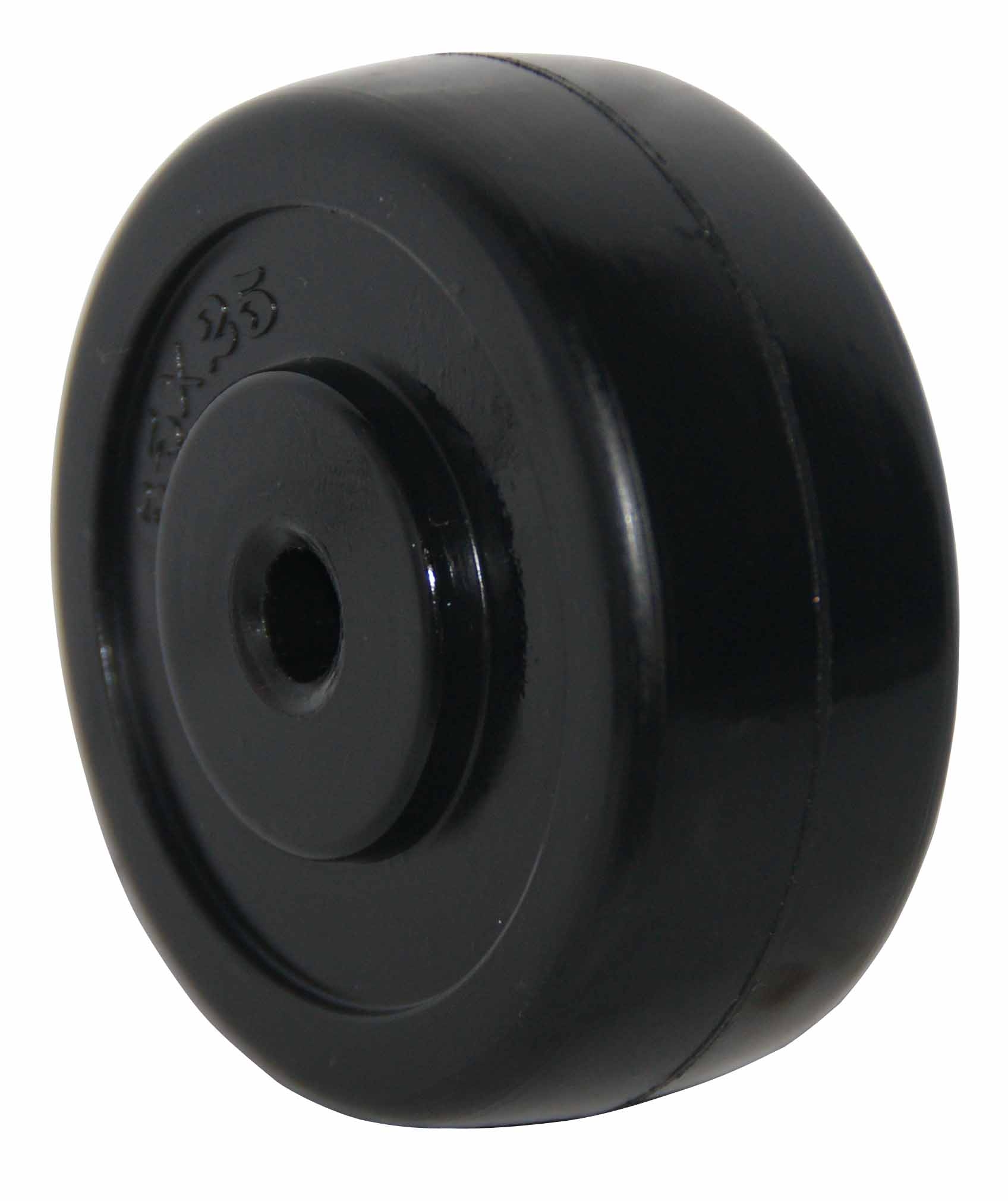

( 25 )		 Plain 88 ( 40 ) 100 ( 45 ) 28.5 8 2525 HSR 2525 SR 2525 HR
21/2
( 63 )		 11/8
( 28 )		 Plain 99 ( 45 ) 119 ( 54 ) 35 8 2528 HSR 2528 SR 2528 HR
3
( 75 )		 13/16
( 20 )		 Plain 77 ( 35 ) 88 ( 40 ) 24 6.5 3020 HSR 3020 SR 3020 HR
3
( 75 )		 1
  ( 25 )		 Plain 110 ( 50 ) 121 ( 55 ) 28.5 8 3025 HSR 3025 SR 3025 HR

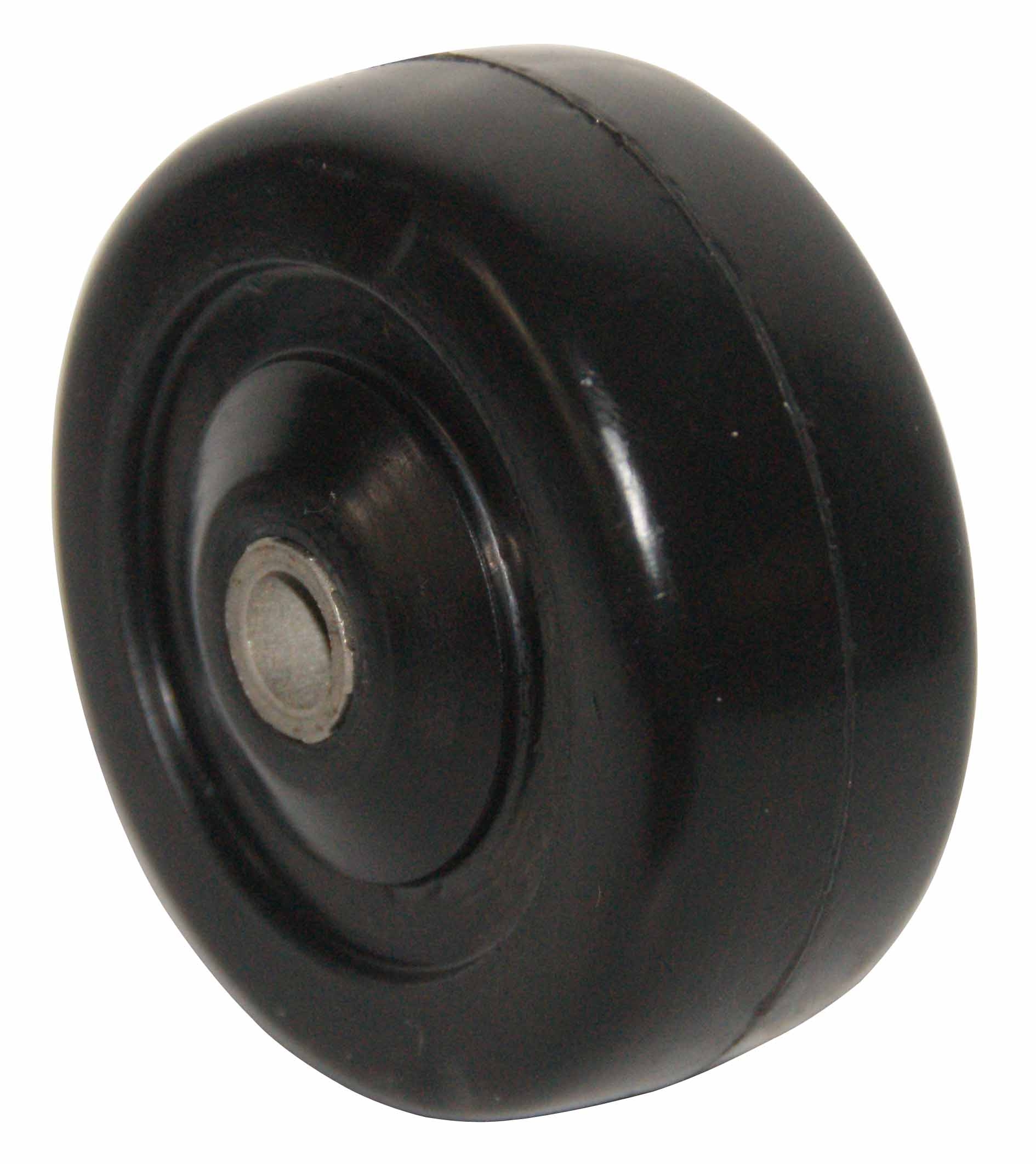

3
( 75 )		 11/4
( 32 )		 Plain or Roller 150 ( 68 ) 176 ( 80 ) 39 9.5 314 HSR 314 SR 314 HR
31/2
( 88 )		 13/16
( 20 )		 Plain 88 ( 40 ) 100 ( 45 ) 23 6.5 3520 HSR 3520 SR 3520 HR
31/2
( 88 )		 11/4
( 32 )		 Plain or Roller 154 ( 70 ) 176 ( 80 ) 39 9.5 3514 HSR 3514 SR 3514 HR
4
( 100 )		 7/8
(22)		 Plain 110 ( 50 ) 110 ( 50 ) 29 8 4022 HSR 4022 SR 4022 HR
4
( 100 )		 11/8
( 27 )		 Plain 121 ( 55 ) 121 ( 55 ) 31 12.3 4027 HSR 　 　

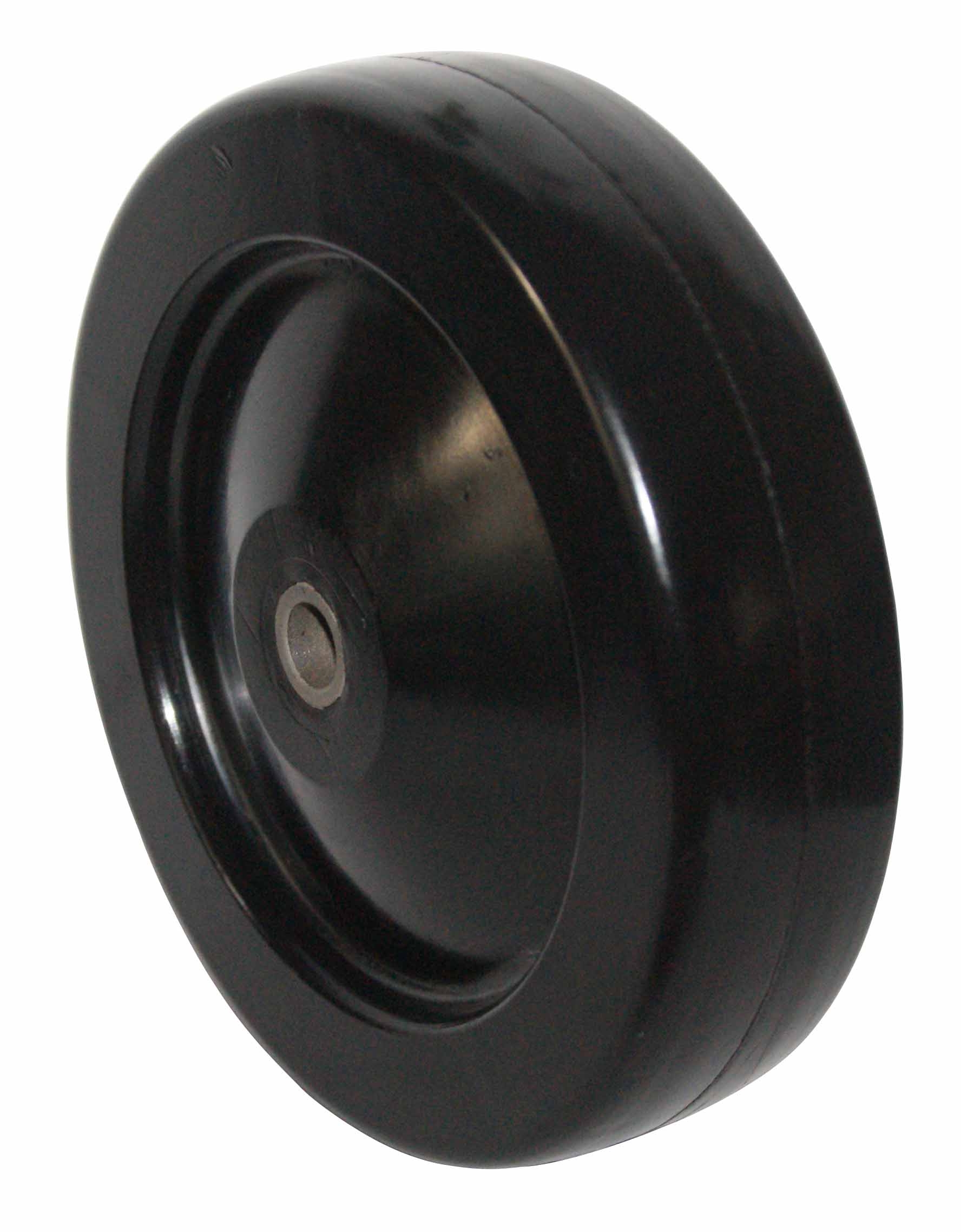

4
( 100 )		 11/4
( 32 )		 Plain or Roller 155 ( 70 ) 200 ( 90 ) 39 9.5 414 HSR 414 SR 414 HR
4
( 100 )		 11/2
( 38 )		 Plain or Roller 225(102 ) 250 (113.5) 50 12.7 4038 HSR 4038 SR 4038 HR
4
( 100 )		 2
( 50 )		 Plain or Roller 300 (136 ) 330 (150) 55 19 4050 HSR 4050 SR 4050 HR

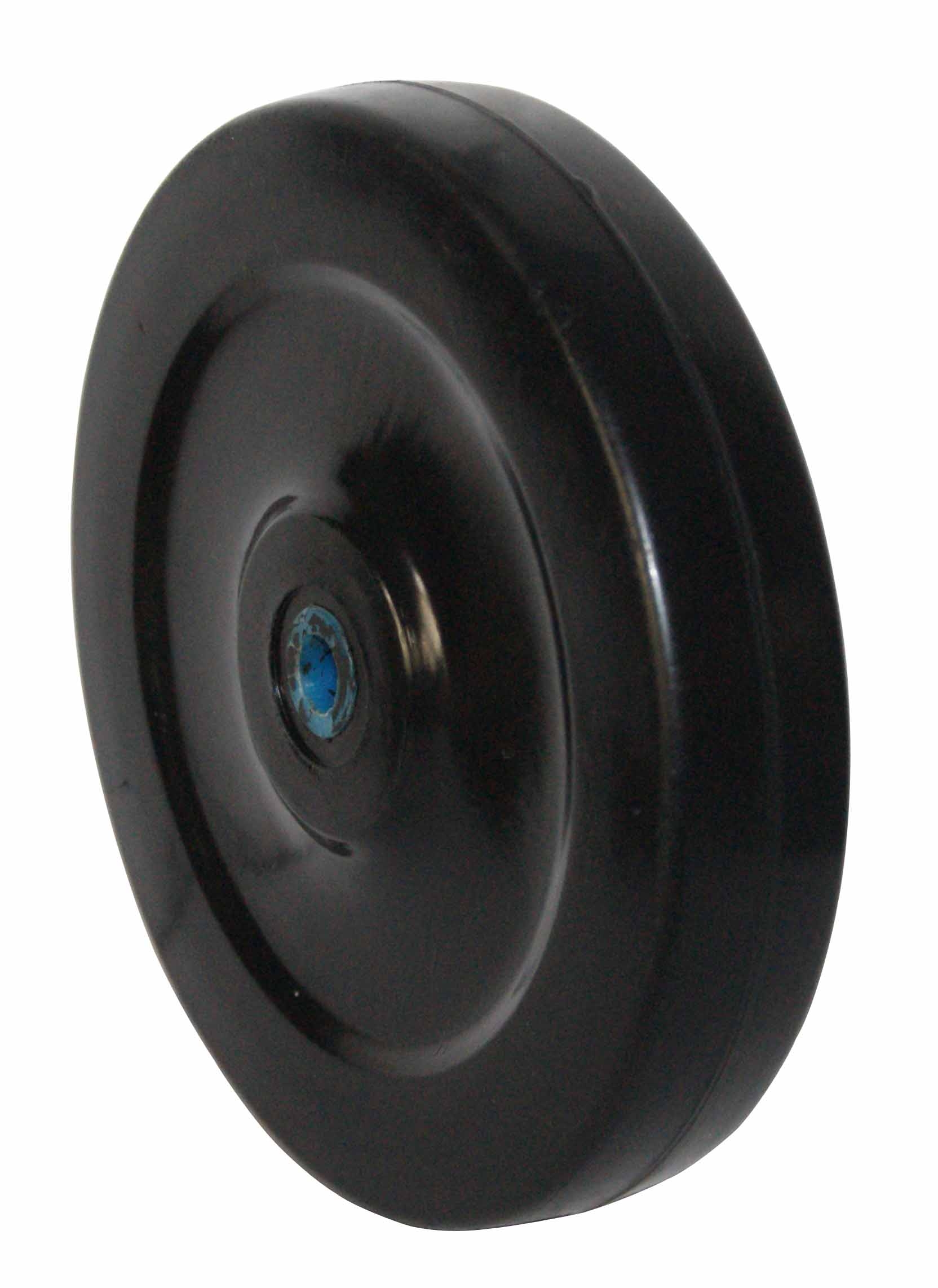

5
( 125 )		 1
( 25 )		 Plain 121 ( 55 ) 132 ( 60 ) 30 8 5025 HSR 5025 SR 5025 HR
5
( 125 )		 11/4
( 32 )		 Plain or Roller 176 ( 80 ) 242 (110) 39 9.5 514 HSR 514 SR 5142 HR
5
( 125 )		 11/2
( 38 )		 Plain or Roller 242 (110) 350 (160) 50 19 5038 HSR 5038 SR 5038 HR
5
( 125 )		 2
( 50 )		 Plain 350 (159) 400 (182) 55 19 5050 HSR 5050 SR 5050 HR
6
( 150 )		 11/4
( 32 )		 Plain 132 (60) 143 ( 65 ) 30 8 6025 HSR 6025 SR 6025 HR
6
( 150 )		 11/2
( 38 )		 Plain or Roller 300 (136) 350(159) 50 19 6038 HSR 6038 SR 6038 HR
6
( 150 )		 2
( 50 )		 Plain or Roller 350 (159) 450(204) 55 19 6050 HSR 6050 SR 6050 HR

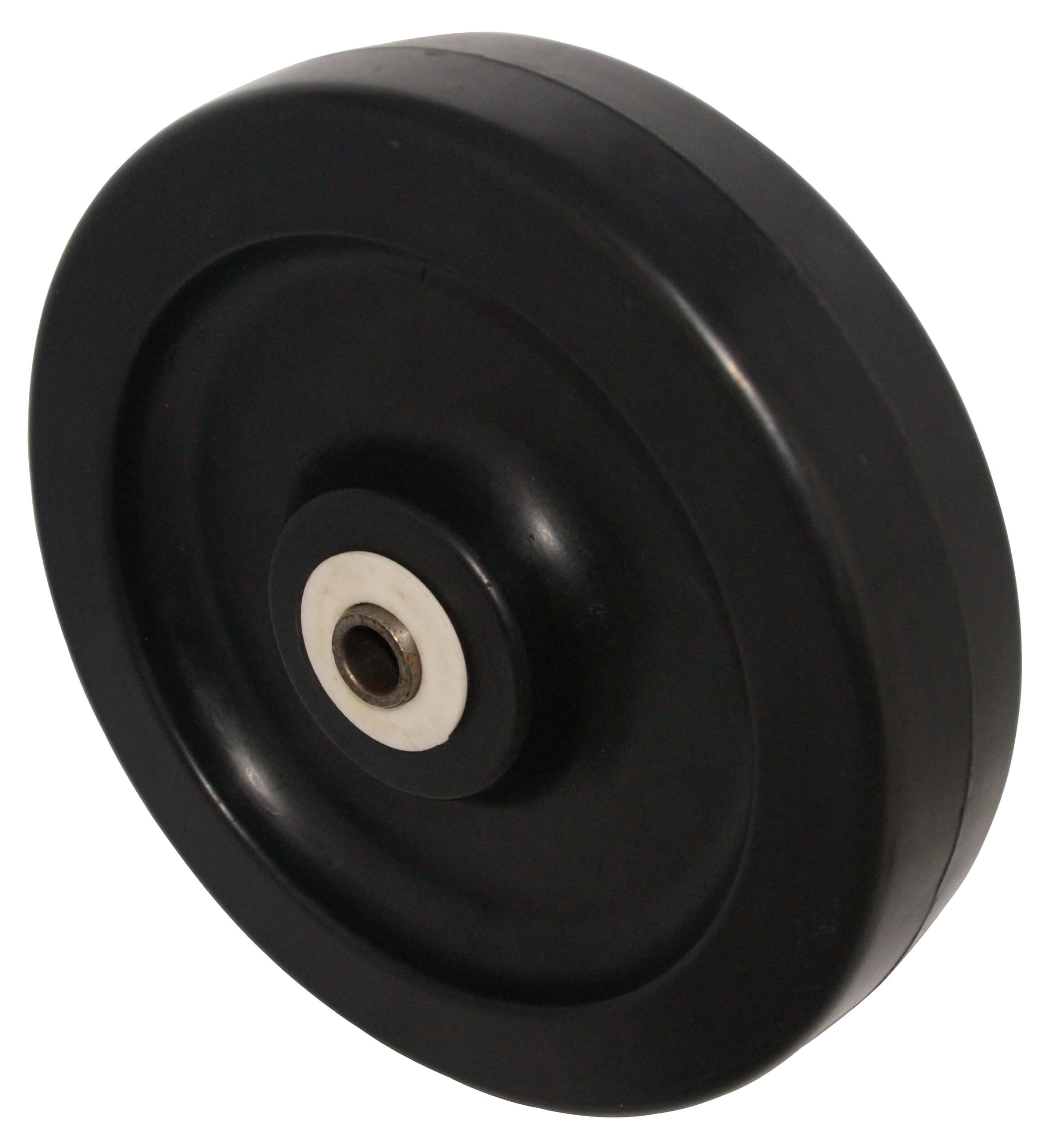

8
( 200 )		 2
( 50 )		 Plain or Roller 450 (204) 500(227) 55 19 8050 HSR 8050 SR 8050 HR
