Product Introduction

Product Name : Polyamide ( Nylon ) & Polypropylene ( PP ) Wheels
Product No : 01
  • Injection Molded Nylon( N ).
  • Injection Molded Polypropylene( P ).
  • Non-Marking,Oil and Chemical Reaistant.
  • Temperature Range -20°F to 200°F
Inquiry
DIAMETER
INCH
(m/m)		 TREADWIDTH
INCH
(m/m)		 BEARING
TYPE		 LOADCAPACITY
LBS ( kgs )		 HUBLENHTH    (m/m) BORE SIZE
(m/m)		 WHEEL NUMBER
Nylon PP
1
( 25 )		 15/32
( 12 )		 Plain 22 ( 10 ) 14 4.7 1012 N 　
11/4
 ( 32 )		 9/16
( 14 )		 Plain 40 ( 18 ) 16 5.3 1413 N 　
11/2
( 38 )		 5/8
( 16 )		 Plain 61 ( 28 ) 20 6.3 1516 N 　
19/16
( 40 )		 5/8
( 16 )		 Plain 61 ( 28 ) 20 6.3 1616 N 　
2
( 50 )		 13/16

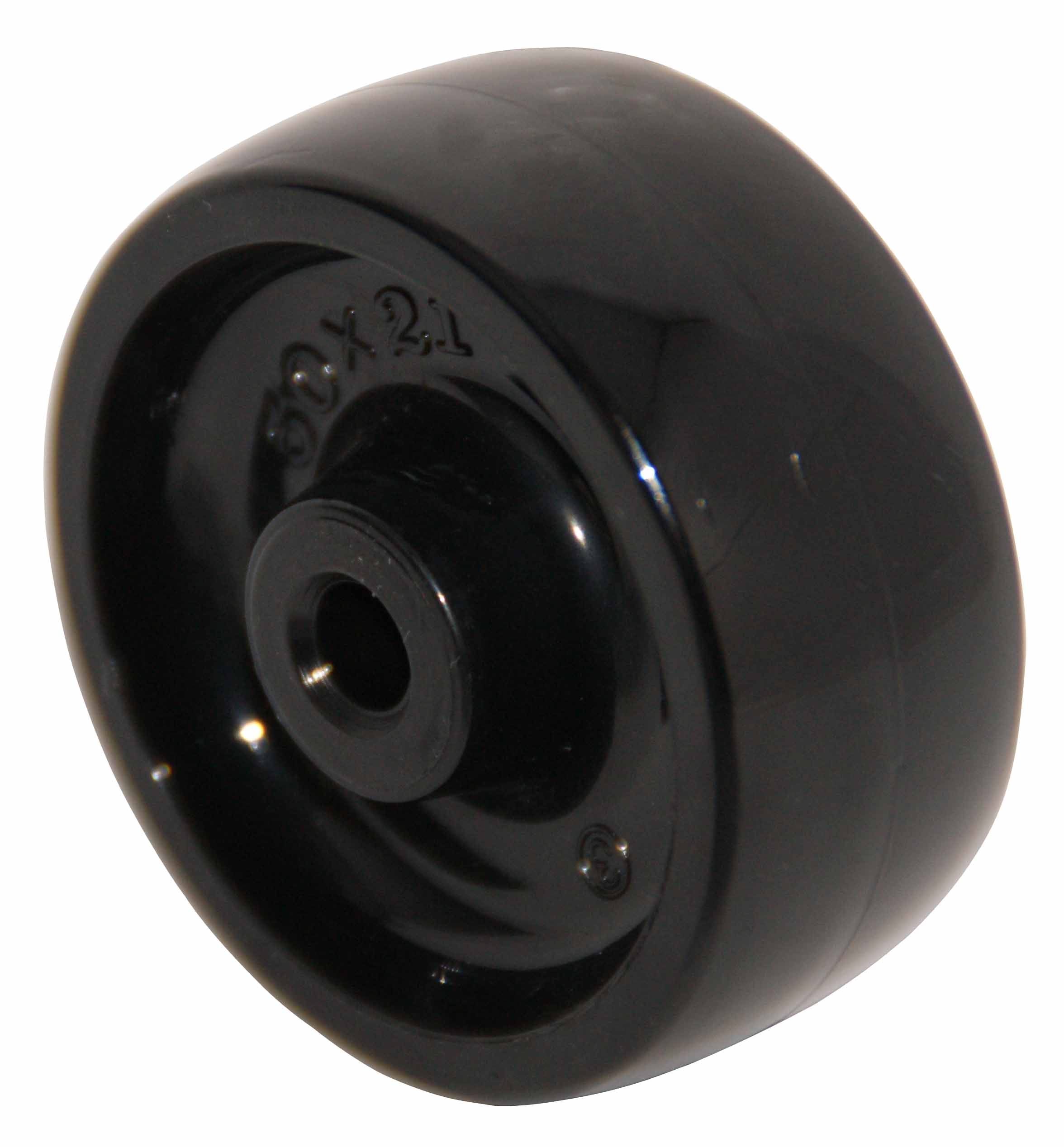

( 21 )		 Plain 83 ( 38 ) 24 6.5 2020 N 2020 P
2
( 50 )		 1
( 25 )		 Plain 100 ( 45 ) 29 8.3 2025 N 2025 P
21/2
( 63 )		 13/16

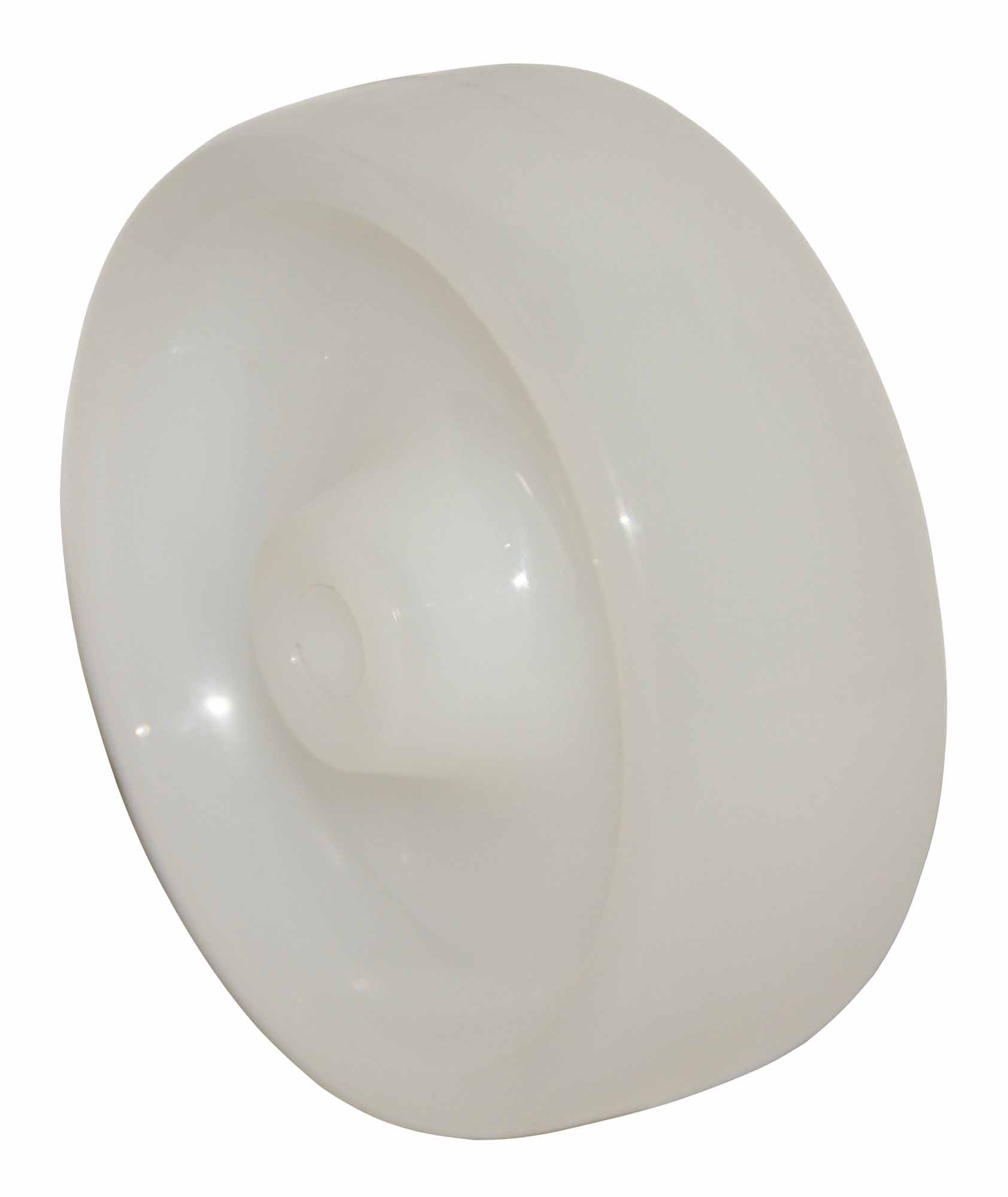

( 21 )		 Plain 90 ( 41 ) 24 6.5 2520 N 　
29/16
( 65 )		 1
( 25 )		 Plain 125 ( 55 ) 30 8 2525 N 　
21/2
( 63 )		 11/8
( 28 )		 Plain 150 ( 68 ) 34 8 2528 N 　
3
( 75 )		 13/16
( 21 )		 Plain 100 ( 45 ) 14 6.5 3020 N 3020 P
3
( 75 )		 1
( 25 )		 Plain 143 ( 65 ) 30 8 3025 N 　
3
( 75 )		 11/4

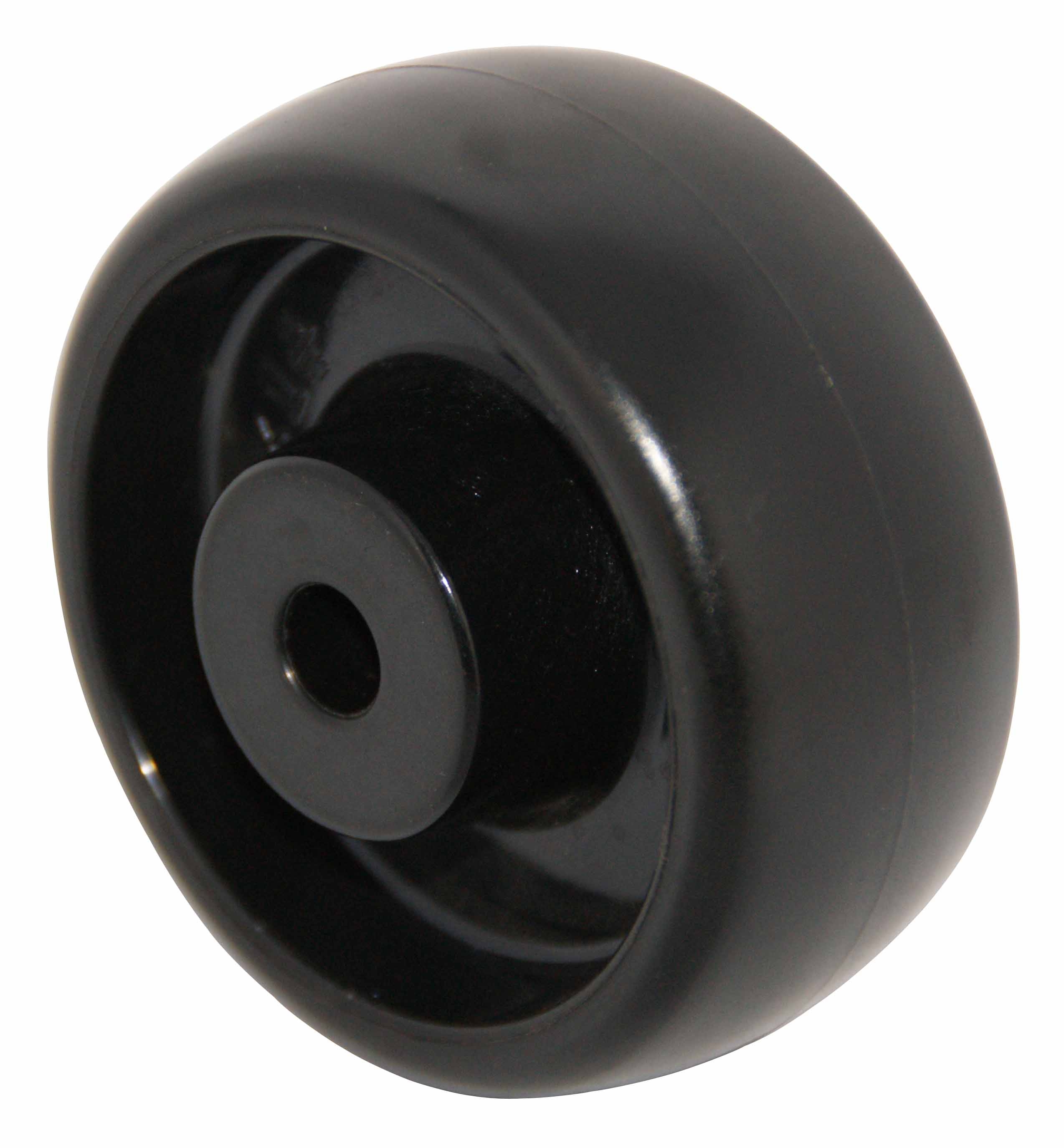

( 32 )		 Plain 220 ( 100 ) 38 9.5 314 N 314 P
4
( 100 )		 1

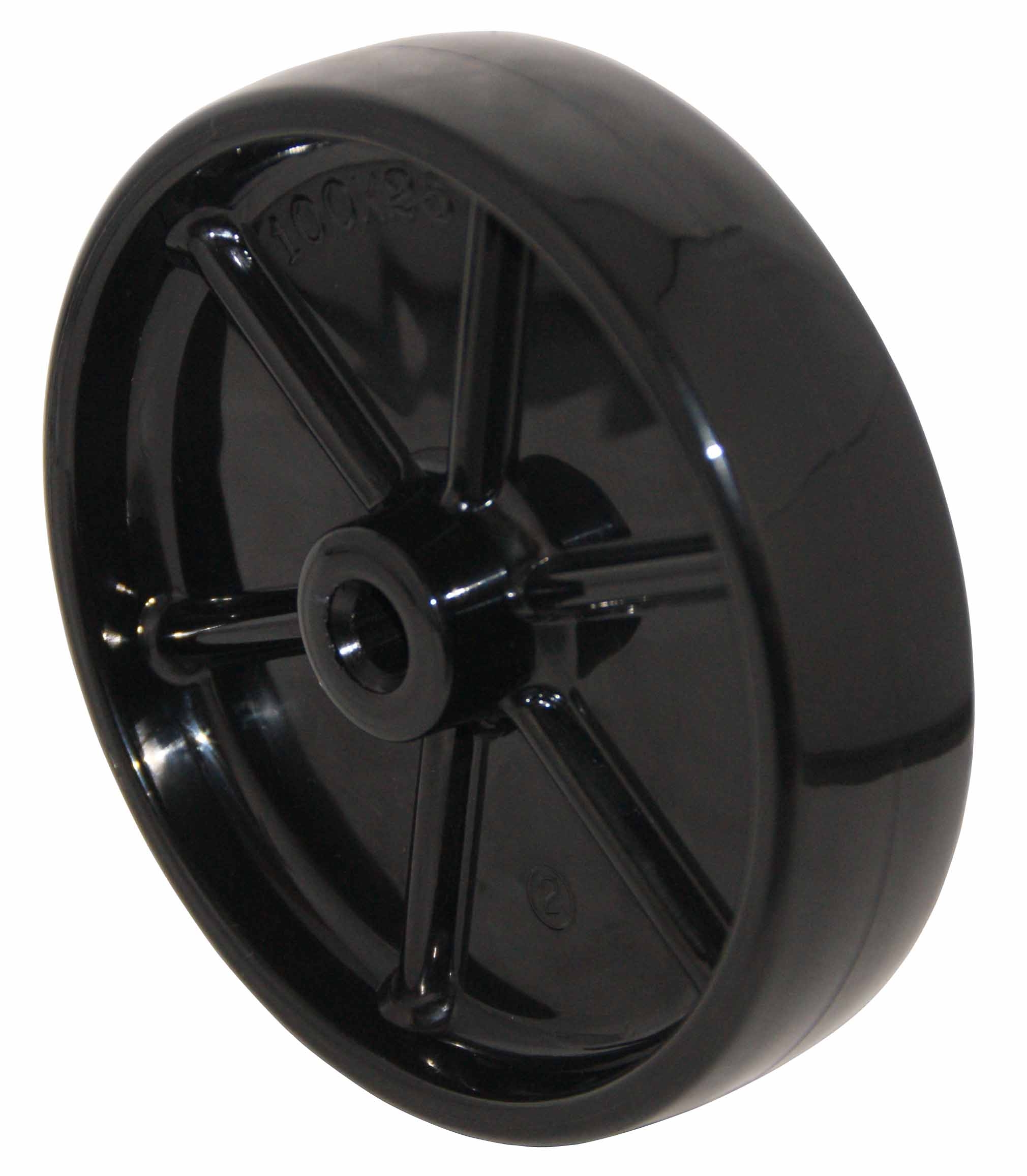

( 25 )		 Plain 132 ( 60 ) 30 8 4025 N 　
4
( 100 )		 13/8
( 35 )		 Plain 250 ( 113 ) 38 9.5 　 414 P
4
( 100 )		 11/2

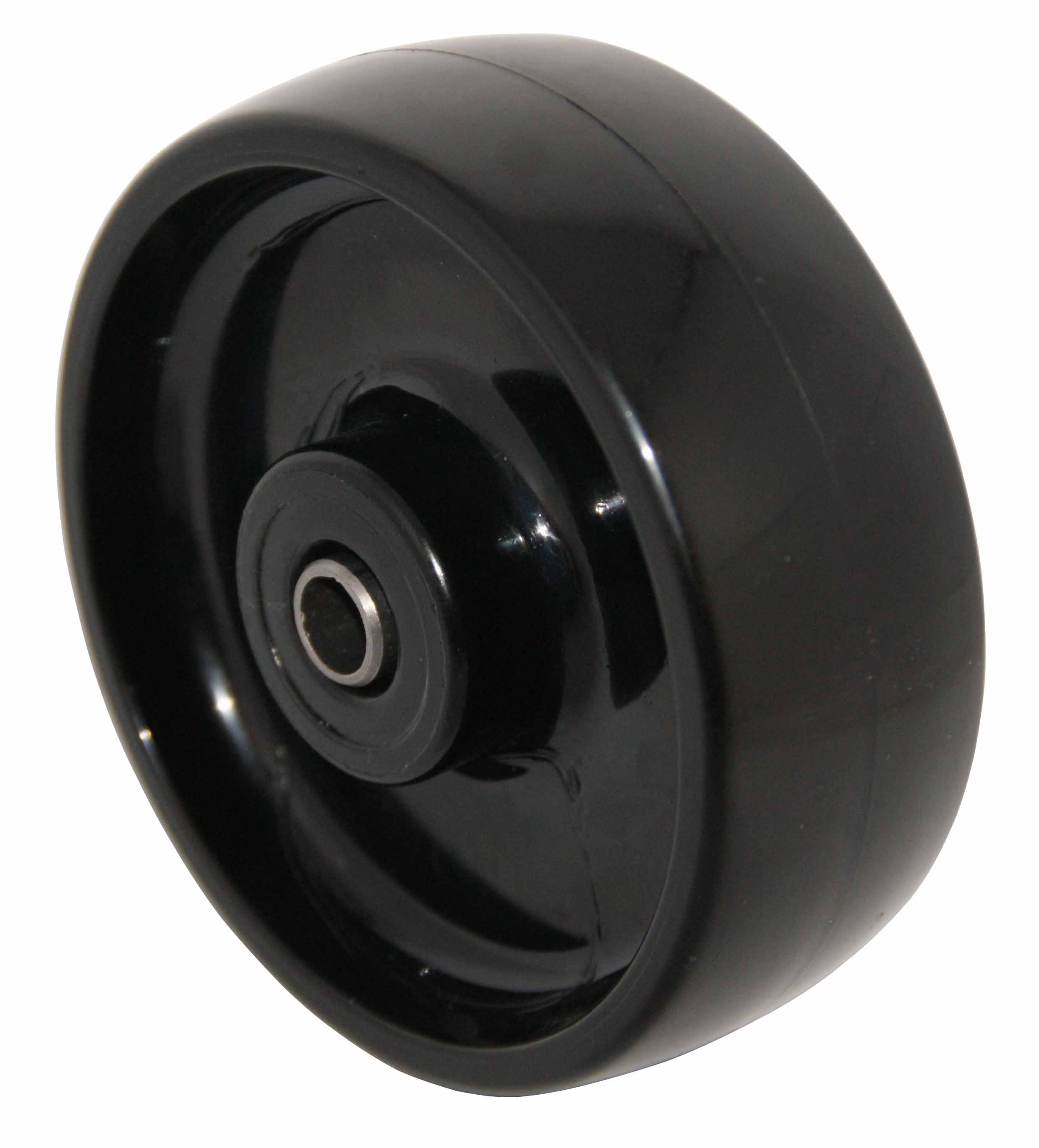

( 38 )		 Plain 250 ( 113 ) 50 12.9 4038 N 　
4
( 100 )		 2
( 50 )		 Roller 400 ( 181 ) 55.5 19 　 4050 P
5
( 125 )		 11/4
( 32 )		 Plain 280 ( 127 ) 38 9.5 　 514 P
5
( 125 )		 11/2
( 38 )		 Plain 350 ( 159 ) 41 19 5038 N 　
5
( 125 )		 2
( 50 )		 Roller 450 ( 204 ) 41 19 　 5050 P
6
( 150 )		 2
( 50 )		 Roller 500 ( 227 ) 55.5 19 　 6050 P
8
( 200 )		 2
( 50 )		 Roller 600 ( 272 ) 55.5 19 　 8050 P
