Bolt Hole Swivel Caster

Bolt Hole Swivel Caster
Product Introduction
DCH4025

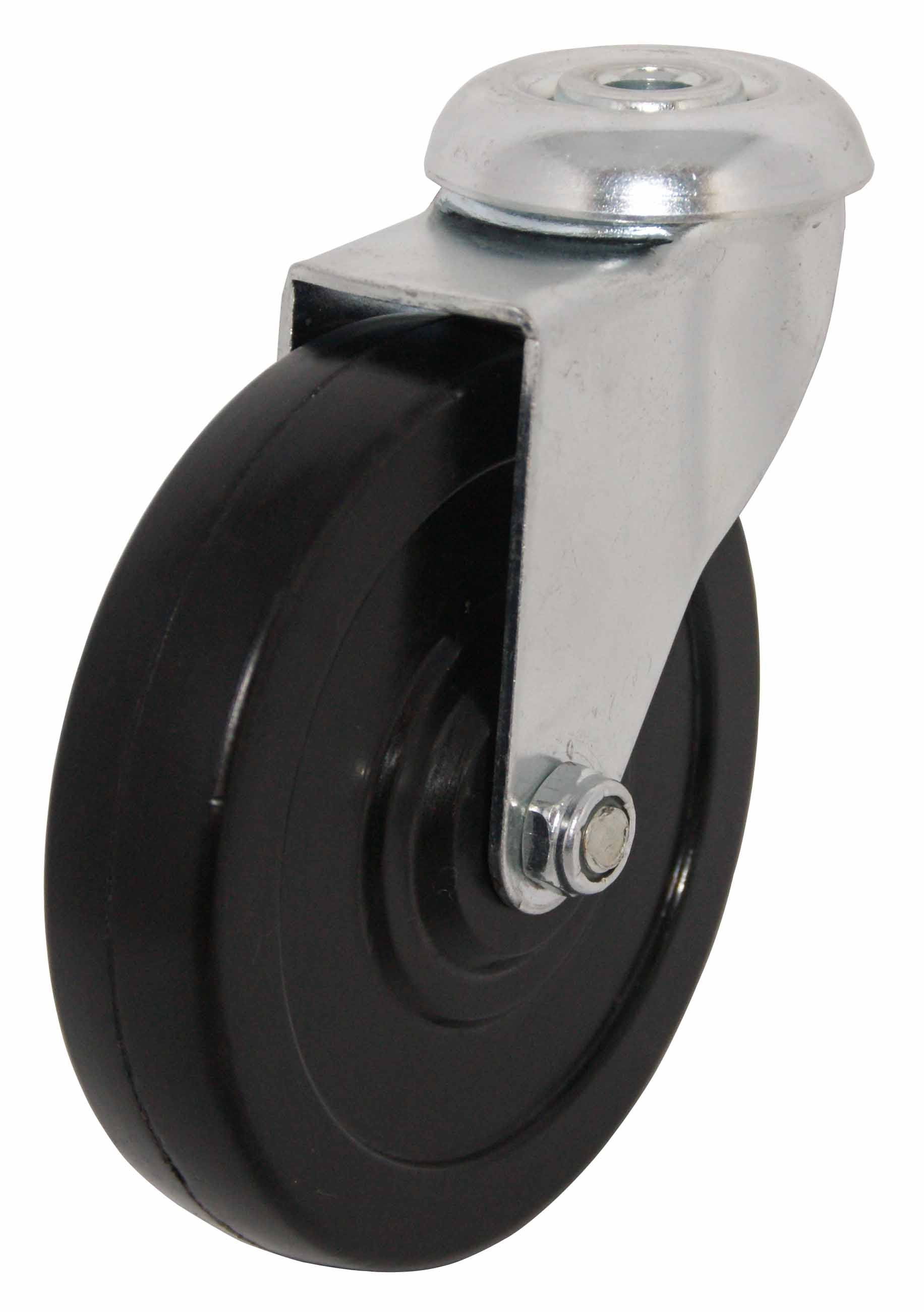

Product Name : Bolt Hole Swivel Caster
Product No : DCH4025
  • Load Capacity: 80-100 LBS (36-50 Kgs)
  • Double Ball Bearing Swivel, Dust Cover.
  • Application: Excellent for trolley and food service equipment and hospital supply Industry and Showing stand.
  • Finish: Zinc(2), Bright Chrome Plating.
  • Option: 2" Front Locking Brake( FB ), 3" Front Total Locking Brake( TLB ),4"Side Locking Brake( SB )
Inquiry
DIAMETER
INCH
( m/m )		 TREAD WIDTH
INCH
( m/m )		 WHEEL TYPE BEARING AXIE SIZE
INCH
( m/m )		 CASTER
 NUMBER
4
( 100 )		 1
( 25 )		 Soft Rubber (SR) Plain 8 DCH4025SR
Hard Rubber (HR) Plain DCH4025HR
Polyurethane (U) Plain DCH4025U
Thermoplastic (TPR) Plain DCH4025TPR
Polypropylene (P) Plain DCH4025P
Nylon (N) Plain DCH4025N

LOAD
CAPCITY
LBS ( Kgs )		 SWIVEL RADIUS
INCH
( m/m )		 OVERALL HEIGHT
INCH
( m/m )		 CASTER
 NUMBER
110 ( 50 ) 35/8
( 92 )		 415/16
( 125 )		 DCH4025SR
110 ( 50 ) DCH4025HR
110 ( 50 ) DCH4025U
110 ( 50 ) DCH4025TPR
110 ( 50 ) DCH4025P
110 ( 50 ) DCH4025N
BOLT HOLE SIZE
m/m		 BOLT HOLE NUMBER
8.2 B8
10.2 B10
