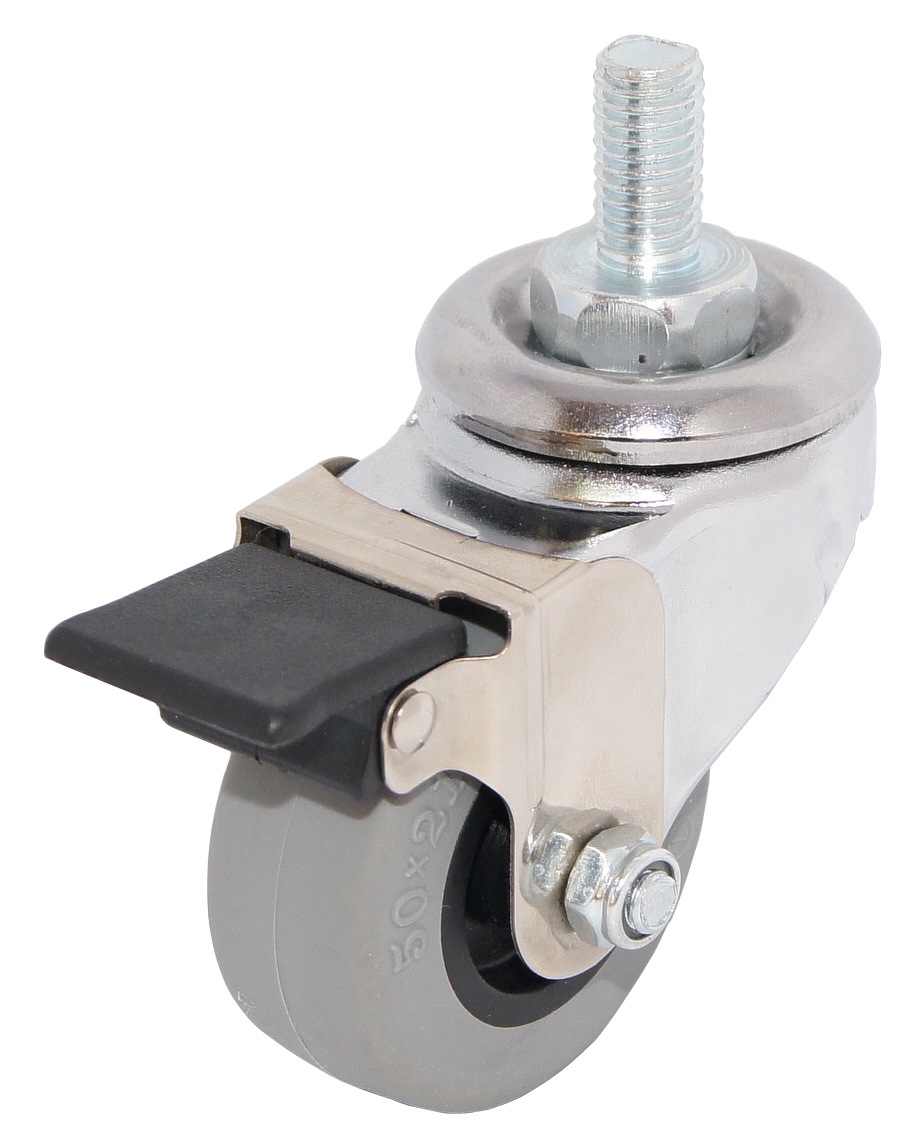

Thread Stem Swivel Caster With HEX

Thread Stem Swivel Caster With HEX
Product Introduction
DCW2020
Product Name : Thread Stem Swivel Caster With HEX
Product No : DCW2020
  • Load Capacity: 80-100 LBS (36-50 Kgs)
  • Double Ball Bearing Swivel, Dust Cover.
  • Application: Excellent for trolley and food service equipment and hospital supply Industry and Showing stand.
  • Finish: Zinc(2), Bright Chrome Plating.
  • Option: 2" Front Locking Brake( FB ), 3" Front Total Locking Brake( TLB ),4"Side Locking Brake( SB )
Inquiry
DIAMETER
INCH
( m/m )		 TREAD WIDTH
INCH
( m/m )		 WHEEL TYPE BEARING AXIE SIZE
INCH
( m/m )		 CASTER
NUMBER
2
( 50 )		 13/16
( 21 )		 Soft Rubber (SR) Plain 8 DCW2020SR
Hard Rubber (HR) Plain DCW2020HR
Polyurethane (U) Plain DCW2020U
Thermoplastic (TPR) Plain DCW2020TPR
Polypropylene (P) Plain DCW2020P
Nylon (N) Plain DCW2020N
LOAD
CAPACITY
LBS(Kgs)		 SWIVEL RADIUS
INCH
( m/m )		 OVERAL HEIGHT
INCH
( m/m )		 CASTER
NUMBER
80 ( 36 ) 13/4
( 45 )		 31/16
( 78 )		 DCW2020SR
80 ( 36 ) DCW2020HR
90 ( 36 ) DCW2020U
90 ( 41 ) DCW2020TPR
90 ( 41 ) DCW2020P
90 ( 41 ) DCW2020N
THREAD STEM SIZE ( HEX )
INCH		      STEM       NUMBER
3/8 - 16 x 3/4 H4
M10 x P1.5 - 3/4" H10
M12 x P1.75 - 19/16" H24
