Friction Ring Stem Swivel Caster

Friction Ring Stem Swivel Caster
Product Introduction
WF3025

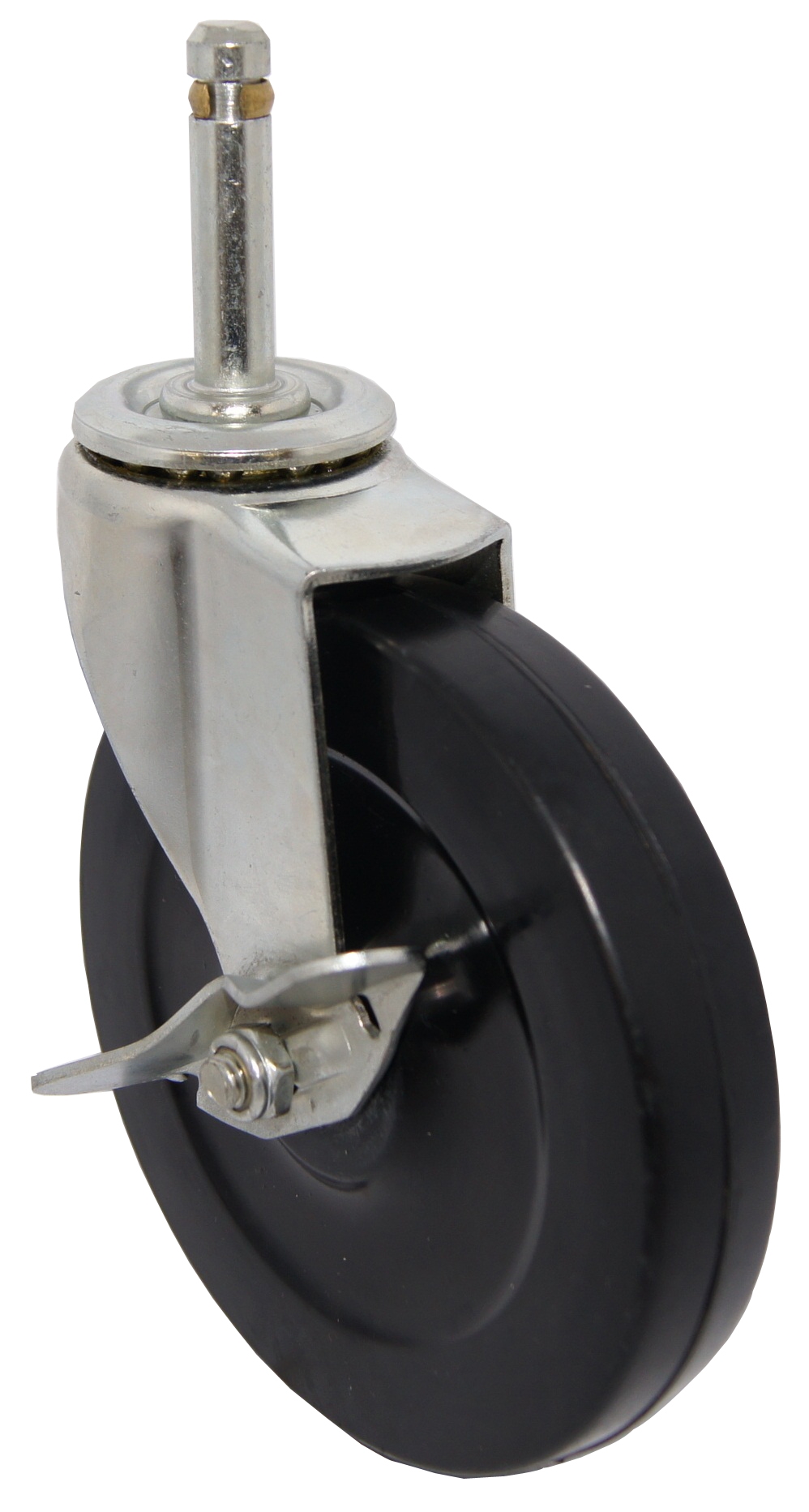

Product Name : Friction Ring Stem Swivel Caster
Product No : WF3025
  • Load Capacity: 100-132LBS(45.4-60.1Kgs)Each caster.
  • Application: Excellent for Institution Equipment and Furniture and Hospital environment and Food Service Equipment and Tool Boxes.
  • Finish: Corrosion Resistant Zinc.
  • Option: Side Locking Brake( SB ).
Inquiry
DIAMETER
INCH
( m/m )		 TREAD WIDTH
INCH
( m/m )		 WHEEL TYPE BEARING AXIE SIZE
INCH
( m/m )		 CASTER
 NUMBER
3
( 75 )		 1
( 25 )		 Soft Rubber (SR) Plain 5/16
( 7.9 )		 WF3025SR
Hard Rubber (HR) Plain WF3025HR
Polyurethane (U) Plain WF3025U
Polyurethane (U) Ball WF3025BU
Thermoplastic (TPR) Plain WF3025TPR
Thermoplastic (TPR) Ball WF3025BTPR
Polypropylene (P) Plain WF3025P
Nylon (N) Plain WF3025N
Cast Iron (C) Plain WF3025C
LOAD
CAPACITY
 LBS ( Kgs )		 SWIVEL RADIUS
INCH
( m/m )		 OVERALL HEIGHT
INCH
( m/m )		 CASTER
 NUMBER
100 ( 45.4 ) 25/8
( 66 )		 35/8
 ( 92 )		 WF3025SR
100 ( 45.4 ) WF3025HR
120 ( 54.5 ) WF3025U
120 ( 54.5 ) WF3025BU
120 ( 54.5 ) WF3025TPR
120 ( 54.5 ) WF3025BTPR
120 ( 54.5 ) WF3025P
120 ( 54.5 ) WF3025N
130 ( 59 ) WF3025C
FRICTION RING STEM SIZE
INCH		 STEM
NUMBER
7/16 x 13/8
 35
7/16 x 11/2
 38
7/16 x 129/32
 49
With Brass Ring stem Other Size Available
