Friction Stem Swivel Caster

Friction Stem Swivel Caster
Product Introduction
DCF3025

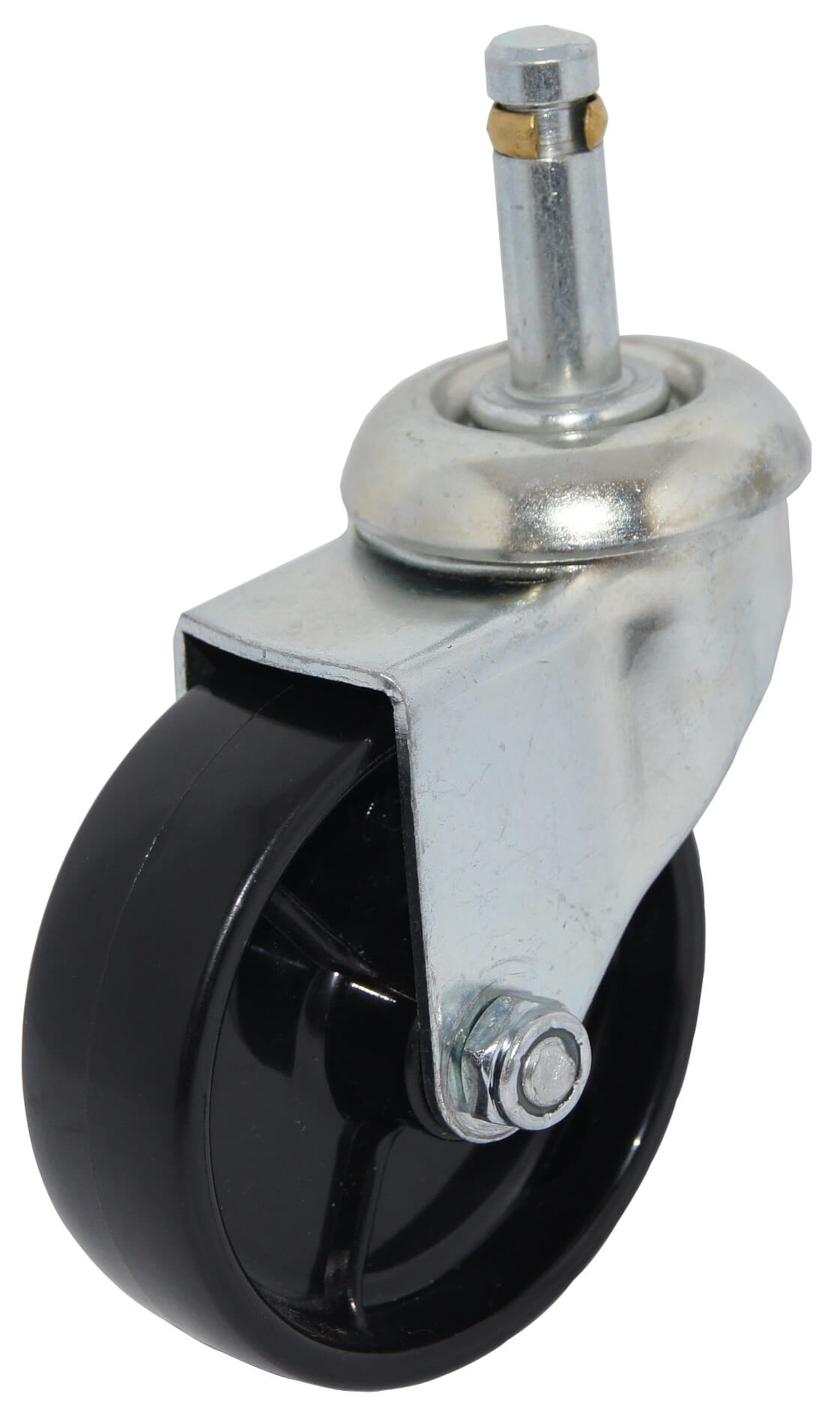

Product Name : Friction Stem Swivel Caster
Product No : DCF3025
  • Load Capacity: 80-100 LBS (36-50 Kgs)
  • Double Ball Bearing Swivel, Dust Cover.
  • Application: Excellent for trolley and food service equipment and hospital supply Industry and Showing stand.
  • Finish: Zinc(2), Bright Chrome Plating.
  • Option: 2" Front Locking Brake( FB ), 3" Front Total Locking Brake( TLB ),4"Side Locking Brake( SB )
Inquiry
DIAMETER
INCH
( m/m )		 TREAD WIDTH
INCH
( m/m )		 TYPE BEARING AXIE SIZE
INCH
( m/m )		 CASTER
NUMBER
3
( 75 )		 1
( 25 )		 Soft Rubber (SR) Plain 8 DCF3025SR
Hard Rubber (HR) Plain DCF3025HR
Polyurethane (U) Plain DCF3025U
Thermoplastic (TPR) Plain DCF3025TPR
Polypropylene (P) Plain DCF3025P
Nylon (N) Plain DCF3025N

LOAD
CAPACITY
LBS(Kgs)		 SWIVEL RADIUS
INCH
( m/m )		 OVERALL HEIGHT
INCH
( m/m )		 CASTER
NUMBER
100 ( 45.4 ) 27/8
( 73 )		 37/8
( 98 )		 DCF3025SR
100 ( 45.4 ) DCF3025HR
100 ( 45.4 ) DCF3025U
100 ( 45.4 ) DCF3025TPR
100 ( 45.4 ) DCF3025P
100 ( 45.4 ) DCF3025N
FRICTION RING STEM SIZE
INCH		 STEM
NUMBER
7/16 x 13/8
 35
With Brass Ring or Steel Ring Stem

Other Size Available
