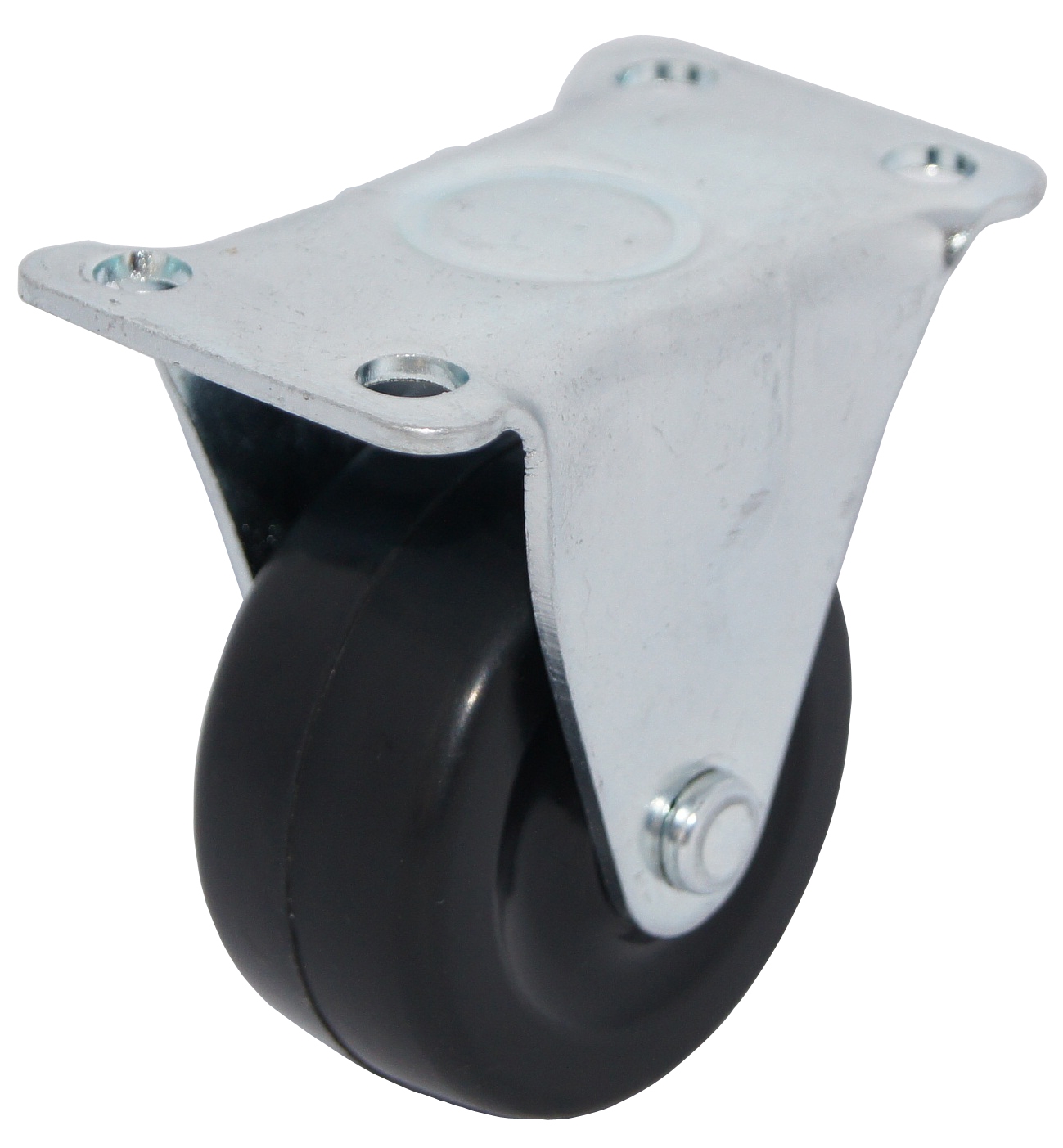

Top Plate Rigid Caster
Product Introduction
GRP2025
Product Name : Top Plate Rigid Caster
Product No : GRP2025
  • Load Capacity:90-350 LBS(40-160Kgs) Each Caster.
  • Application:General use in Hardware. Factory and Warehouse. Good Combination of Strength, Durability, Economy.
  • Finishs:Corrosion-Resistant Zinc.
DIAMETER
INCH
( m/m )
TREAD WIDTH
INCH
( m/m )
WHEEL TYPE BEARING AXIE SIZE
INCH
( m/m )
CASTER
 NUMBER
2
( 50 )
1
( 25 )
Soft Rubber (SR) Plain 1/4
( 6.3 )
GRP2025SR
Hard Rubber (HR) Plain GRP2025HR
Polypropylene (P) Plain GRP2025P
Nylon (N) Plain GRP2025N
Cast Iron (C) Plain GRP2025C
LOAD
CAPCITY
LBS ( Kgs )
OVERALL HEIGHT
INCH
( m/m )
CASTER
 NUMBER
90 ( 40.8 ) 29/16
( 65 )
GRP2025SR
100 ( 45.4 ) GRP2025HR
100 ( 45.4 ) GRP2025P
100 ( 45.4 ) GRP2025N
100 ( 45.4 ) GRP2025C
DIAMETER
INCH
( m/m )
TOP PLATE SIZE
INCH
( m/m )
BOLT HOLE SPACING
INCH

( m/m )
BOLT HOLE SIZE
INCH
( m/m )
TOP PLATE NUMBER
2 19/16 x 211/16
( 40 x 68 )
15/16 x 21/8
( 24 x 54.5 )
1/
( 6.5 )
R1
21/2
23/8 x 47/16
( 60 x 113 )
11/16 x 31/2
( 26.4 x 88 )
5/16
( 8 )
R2
3 27/16 x 47/8
( 62 x 124 )
13/16 x 315/16
( 30.5 x 100.5 )
5/16
( 8.5 )
R3
4 31/4 x 61/4
( 82 x 159 )
13/4 x 415/16
( 44 x 126 )
3/8
( 10.3 )
R4
