Product Introduction
GRP2528

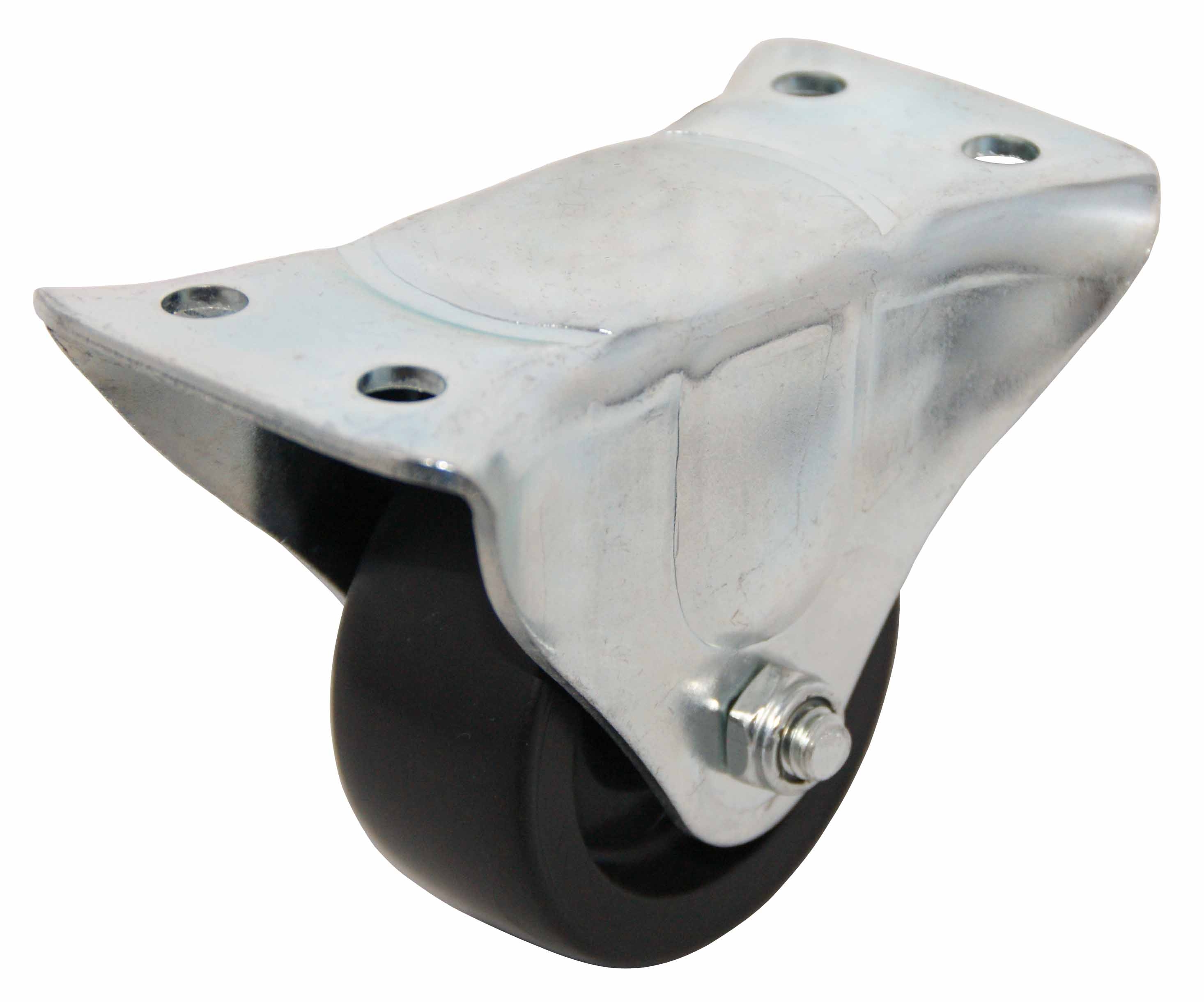

Product Name : Top Plate Rigid Caster
Product No : GRP2528
  • Load Capacity:90-350 LBS(40-160Kgs) Each Caster.
  • Application:General use in Hardware. Factory and Warehouse. Good Combination of Strength, Durability, Economy.
  • Finishs:Corrosion-Resistant Zinc.
Inquiry
DIAMETER
INCH
( m/m )		 TREAD WIDTH
INCH
( m/m )		 WHEEL TYPE BEARING AXIE SIZE
INCH
( m/m )		 CASTER
NUMBER
21/2
( 63 )		 11/8
 ( 28 )		 Soft Rubber (SR) Plain  5/16
( 8 )		 GRP2528SR
Hard Rubber (HR) Plain GRP2528HR
Polypropylene (P) Plain GRP2528P
Nylon (N) Plain GRP2528N
Cast Iron (C) Plain GRP2528C
LOAD
CAPCITY
LBS ( Kgs )		 OVERALL HEIGHT
INCH
( m/m )		 CASTER
NUMBER
100 ( 45.4 ) 31/4
( 82 )		 GRP2528SR
120 ( 54.4 ) GRP2528HR
160 ( 72.6 ) GRP2528P
160 ( 72.6 ) GRP2528N
160 ( 72.6 ) GRP2528C
DIAMETER
INCH
( m/m )		 TOP PLATE SIZE
INCH
( m/m )		 BOLT HOLE SPACING
INCH
( m/m )		 BOLT HOLE SIZE
INCH
( m/m )		 TOP PLATE NUMBER
2 19/16 x 211/16
( 40 x 68 )		 15/16 x 21/8
( 24 x 54.5 )		 1/4
( 6.5 )		 R1
21/2
 23/8 x 47/16
( 60 x 113 )		 11/16 x 31/2
( 26.4 x 88 )		 5/16
( 8 )		 R2
3 27/16 x 47/8
( 62 x 124 )		 13/16 x 315/16
( 30.5 x 100.5 )		 5/16
( 8.5 )		 R3
4 31/4 x 61/4
( 82 x 159 )		 13/4 x 415/16
( 44 x 126 )		 3/8
( 10.3 )		 R4
