Product Introduction
ISO314

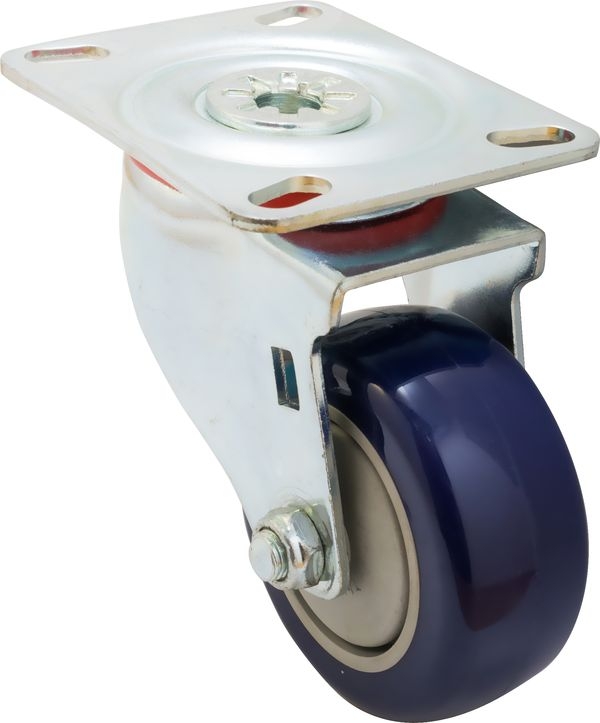

Product Name : Top Plate Swivel Caster
Product No : ISO314
  • Load Capacity: 150-300 LBS (68-136 Kgs)Each Caster.
  • Application: Excellent for Hospital Supply Industry,Trolleys and Food Service Equipment.
  • Finish: Corrosion-Resistant Zinc.

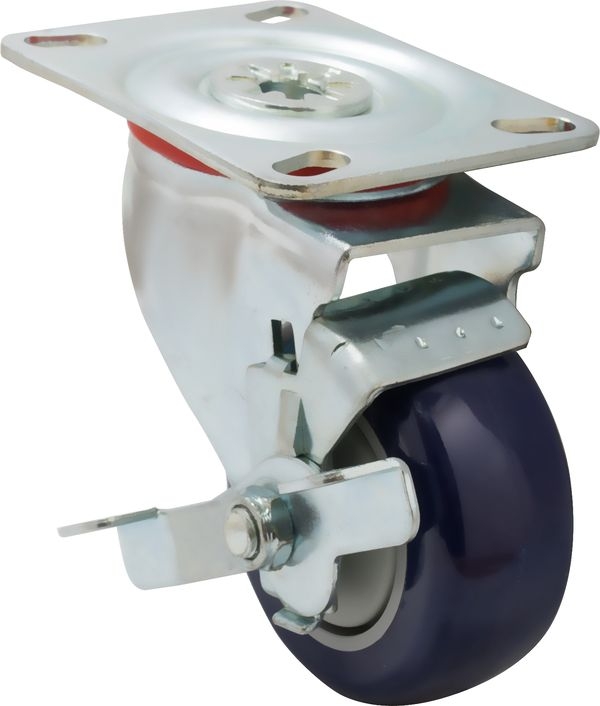

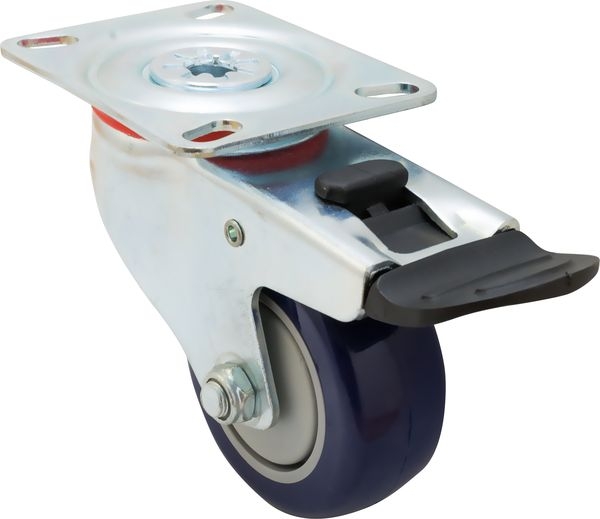

  • Option: Side Locking Brake( SB ) or Front Total Locking Brake( TLB ).
Inquiry
DIAMETER
INCH
( m/m )		 TREAD WIDTH
INCH
( m/m )		 WHEEL TYPE BEARING AXIE SIZE
INCH
( m/m )		 CASTER
NUMBER
3
( 75 )		 11/4
( 32 )		 Soft Rubber (SR) Plain 3/8
( 9.5 )		 ISO314SR
Hard Rubber (HR) Plain ISO314HR
Polyurethane (U) Ball ISO314BU
Thermoplastic (TPR) Ball ISO314BTPR
Polypropylene (P) Plain ISO314P
Nylon (N) Plain ISO314N
LOAD
CAPCITY
 LBS ( Kgs )		 SWIVEL RADIUS
INCH
( m/m )		 OVERALL HEIGHT
INCH
( m/m )		 CASTER
NUMBER
150 ( 68 ) PL- 3
( 76 )
TLB - 5
( 127 )		 41/8
( 105 )		 ISO314SR
200 ( 90 ) ISO314HR
220 ( 100 ) ISO314BU
220 ( 100 ) ISO314BTPR
220 ( 100 ) ISO314P
220 ( 100 ) ISO314N
TOP PLATE SIZE
INCH
( m/m )		 BOLT HOLE SPACING
INCH
( m/m )		 BOLT HOLE SIZE
( m/m )		 TOP PLATE NUMBER
31/16 x 33/4
( 78 x 96 )		 13/4 - 23/8 x 3 - 31/8
( 44 - 60 x 76 - 80 )		 8.8 S2
