Product Introduction
ISOH314

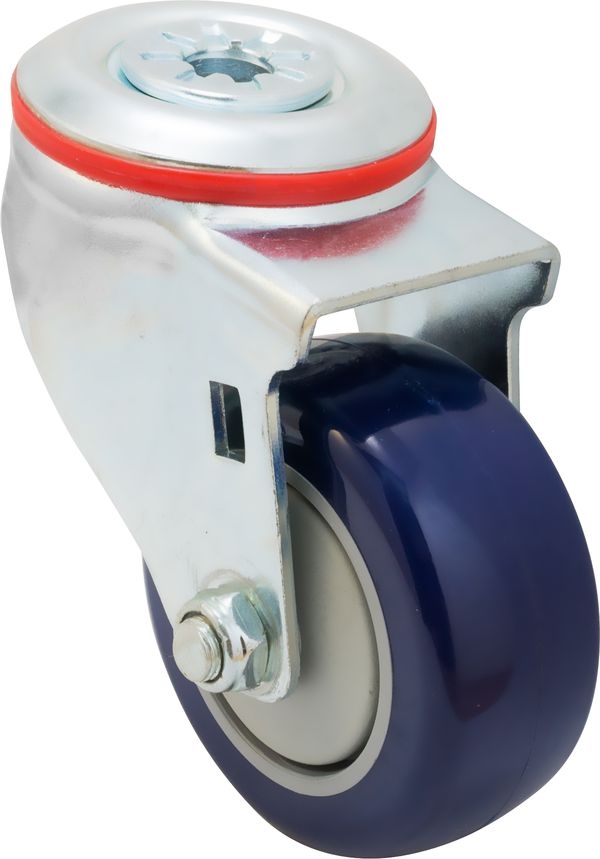

Product Name : Bolt Hole Swivel Caster
Product No : ISOH314
  • Load Capacity: 150-300 LBS (68-136 Kgs)Each Caster.
  • Application: Excellent for Hospital Supply Industry,Trolleys and Food Service Equipment.
  • Finish: Corrosion-Resistant Zinc.

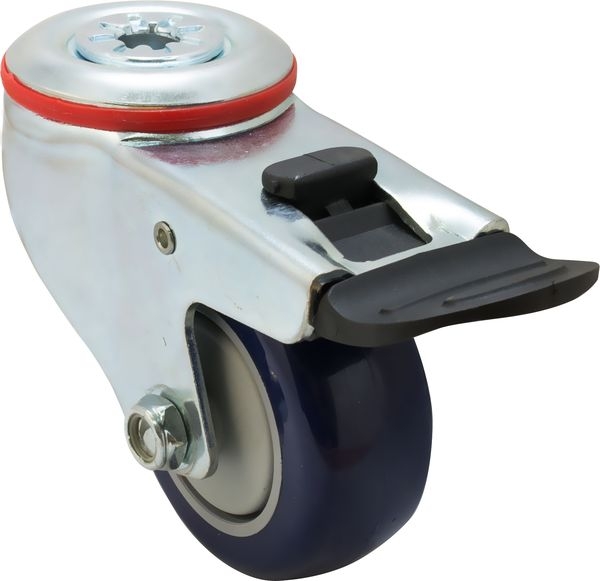

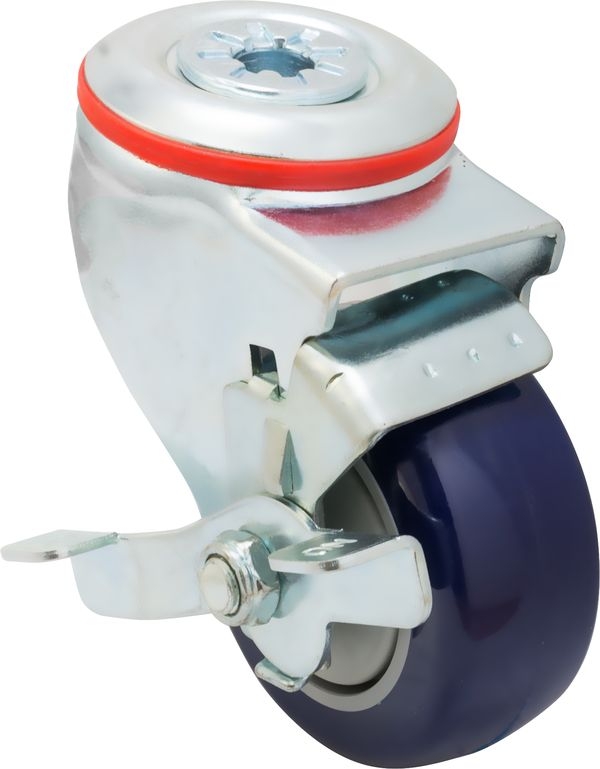

  • Option: Side Locking Brake( SB ) or Front Total Locking Brake( TLB ).
Inquiry
DIAMETER
INCH
( m/m )		 TREAD WIDTH
INCH
( m/m )		 TYPE BEARING AXIE SIZE
INCH
( m/m )		 CASTER
NUMBER
3
( 75 )		 11/4
( 32 )		 Soft Rubber (SR) Plain 3/8
( 9.5 )		 ISOH314SR
Hard Rubber (HR) Plain ISOH314HR
Polyurethane (U) Ball ISOH314BU
Thermoplastic (TPR) Ball ISOH314BTPR
Polypropylene (P) Plain ISOH314P
Nylon (N) Plain ISOH314N
LOAD
CAPCITY
 LBS ( Kgs )		 SWIVEL RADIUS
INCH
( m/m )		 OVERALL HEIGHT
INCH
( m/m )		 CASTER
NUMBER
150 ( 68 ) HO - 3
( 76 )
TLB - 5
( 127 )		 41/8
( 105 )		 ISOH314SR
200 ( 90 )  ISOH314HR
220 ( 100 ) ISOH314BU
220 ( 100 ) ISOH314BTPR
220 ( 100 ) ISOH314P
220 ( 100 ) ISOH314N
BOLT HOLE SIZE
INCH
( m/m )		 BOLT HOLE
NUMBER
1/2
12.7		 B12
