Bolt Hole Swivel Caster

Bolt Hole Swivel Caster
Bolt Hole Swivel Caster
Bolt Hole Swivel Caster
Product Introduction
ISOH414

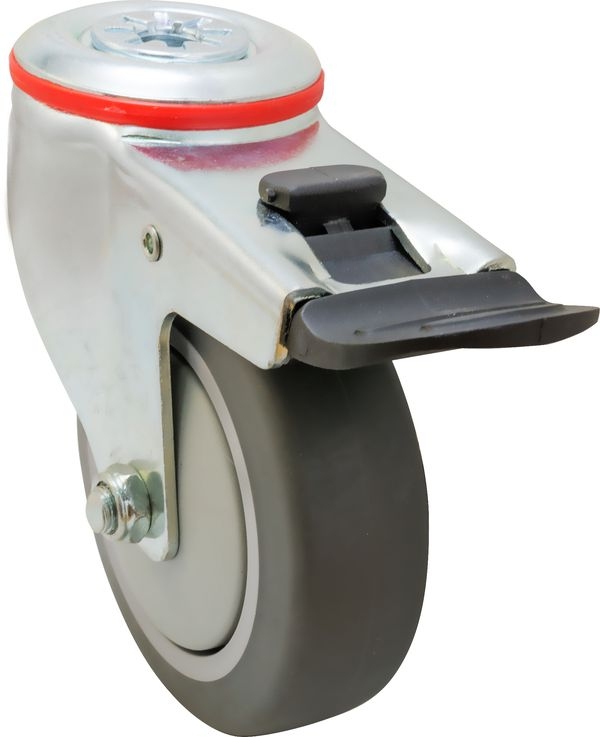

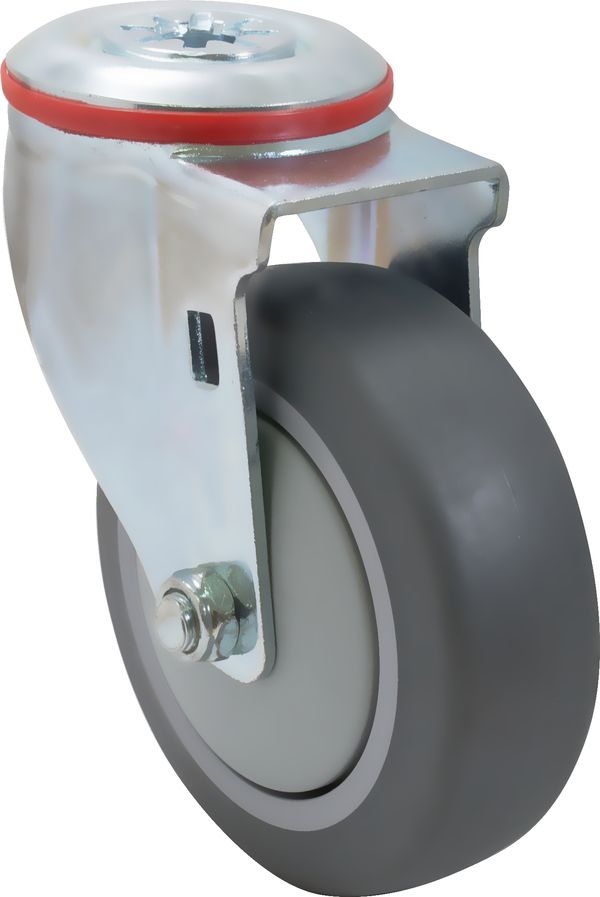

Product Name : Bolt Hole Swivel Caster
Product No : ISOH414
  • Load Capacity: 150-300 LBS (68-136 Kgs)Each Caster.
  • Application: Excellent for Hospital Supply Industry,Trolleys and Food Service Equipment.
  • Finish: Corrosion-Resistant Zinc.
  • Option: Side Locking Brake( SB ) or Front Total Locking Brake( TLB ).
Inquiry
DIAMETER
INCH
( m/m )		 TREAD WIDTH
INCH
( m/m )		 TYPE BEARING AXIE SIZE
INCH
( m/m )		 CASTER
NUMBER
4
( 100 )		 11/4
( 32 )		 Soft Rubber (SR) Plain 3/8
( 9.5 )		 ISOH414SR
Hard Rubber (HR) Plain ISOH414HR
Polyurethane (U) Ball ISOH414BU
Thermoplastic (TPR) Ball ISOH414BTPR
Polypropylene (P) Plain ISOH414P
Nylon (N) Plain ISOH414N
LOAD
CAPCITY
 LBS ( Kgs )		 SWIVEL RADIUS
INCH
( m/m )		 OVERALL HEIGHT
INCH
( m/m )		 CASTER
NUMBER
150 ( 68 ) HO - 31/2
( 89 )
TLB - 5
( 127 )		 51/8
( 130 )		 ISOH414SR
200 ( 90 ) ISOH414HR
250 ( 113 ) ISOH414BU
250 ( 113 ) ISOH414BTPR
250 ( 113 ) ISOH414P
250 ( 113 ) ISOH414N
BOLT HOLE SIZE
INCH
( m/m )		 BOLT HOLE
NUMBER
1/2
12.7		 B12
