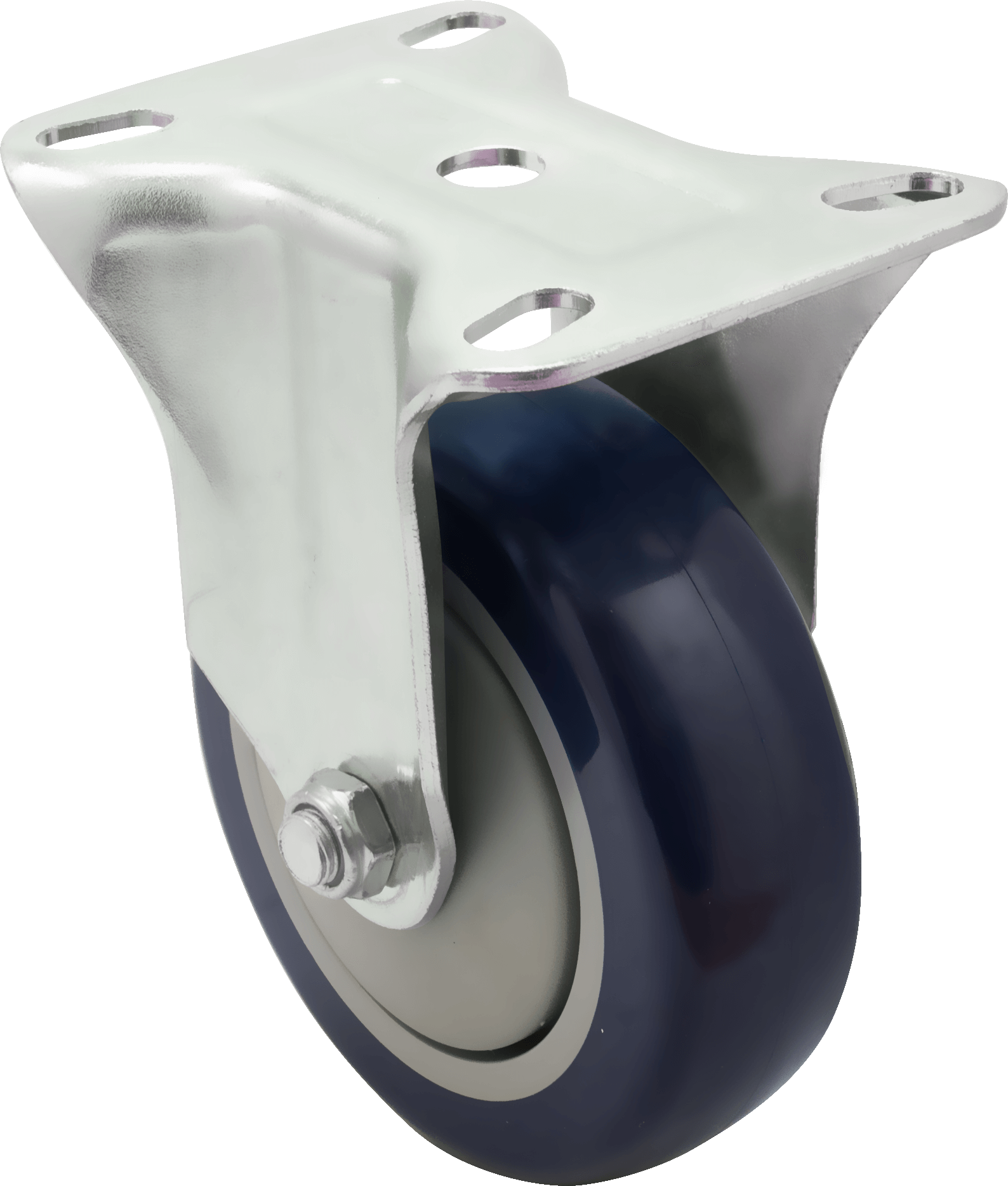

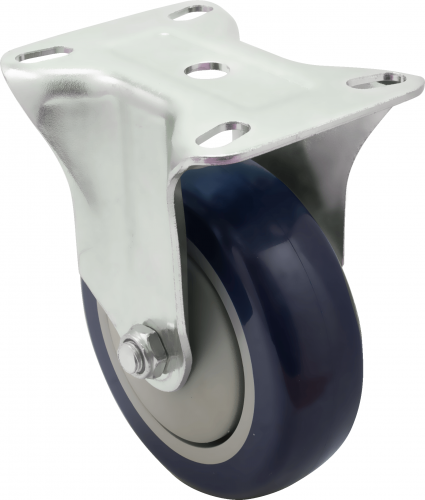

Rigid Caster

Rigid Caster
Product Introduction
ISOR414
Product Name : Rigid Caster
Product No : ISOR414
  • Load Capacity: 150-300 LBS (68-136 Kgs) Each Caster.
  • Application: Excellent for Hospital Supply Industry,Trolleys and Food Service Equipment.
  • Finish: Corrosion-Resistant Zinc.
Inquiry
DIAMETER
INCH
( m/m )		 TREAD WIDTH
INCH
( m/m )		 WHEEL TYPE BEARING AXIE SIZE
INCH
( m/m )		 CASTER
 NUMBER
4
( 100 )		 11/4
( 32 )		 Soft Rubber (SR) Plain 3/8
( 9.5 )		 ISOR414SR
Hard Rubber (HR) Plain ISOR414HR
Polyurethane (U) Ball ISOR414BU
Thermoplastic (TPR) Ball ISOR414BTPR
Polypropylene (P) Plain ISOR414P
Nylon (N) Plain ISOR414N
LOAD
CAPCITY
LBS ( Kgs )		 OVERALL HEIGHT
INCH
( m/m )		 CASTER
 NUMBER
150 ( 68 ) 51/8
( 130 )		 ISOR414SR
200 ( 90 )  ISOR414HR
250 ( 113 ) ISOR414BU
250 ( 113 ) ISOR414BTPR
250 ( 113 ) ISOR414P
250 ( 113 ) ISOR414N
TOP PLATE SIZE
INCH
( m/m )		 BOLT HOLE SPACING
INCH
( m/m )		 BOLT HOLE SIZE
( m/m )		 TOP PLATE NUMBER
31/8 x 4
( 79 x 101 )		 13/4 - 23/8 x 3 - 31/8
( 44 - 60 x 76 - 80 )		 8.8 S2
