Top Plate Swivel Caster

Top Plate Swivel Caster
Product Introduction
JSP1012

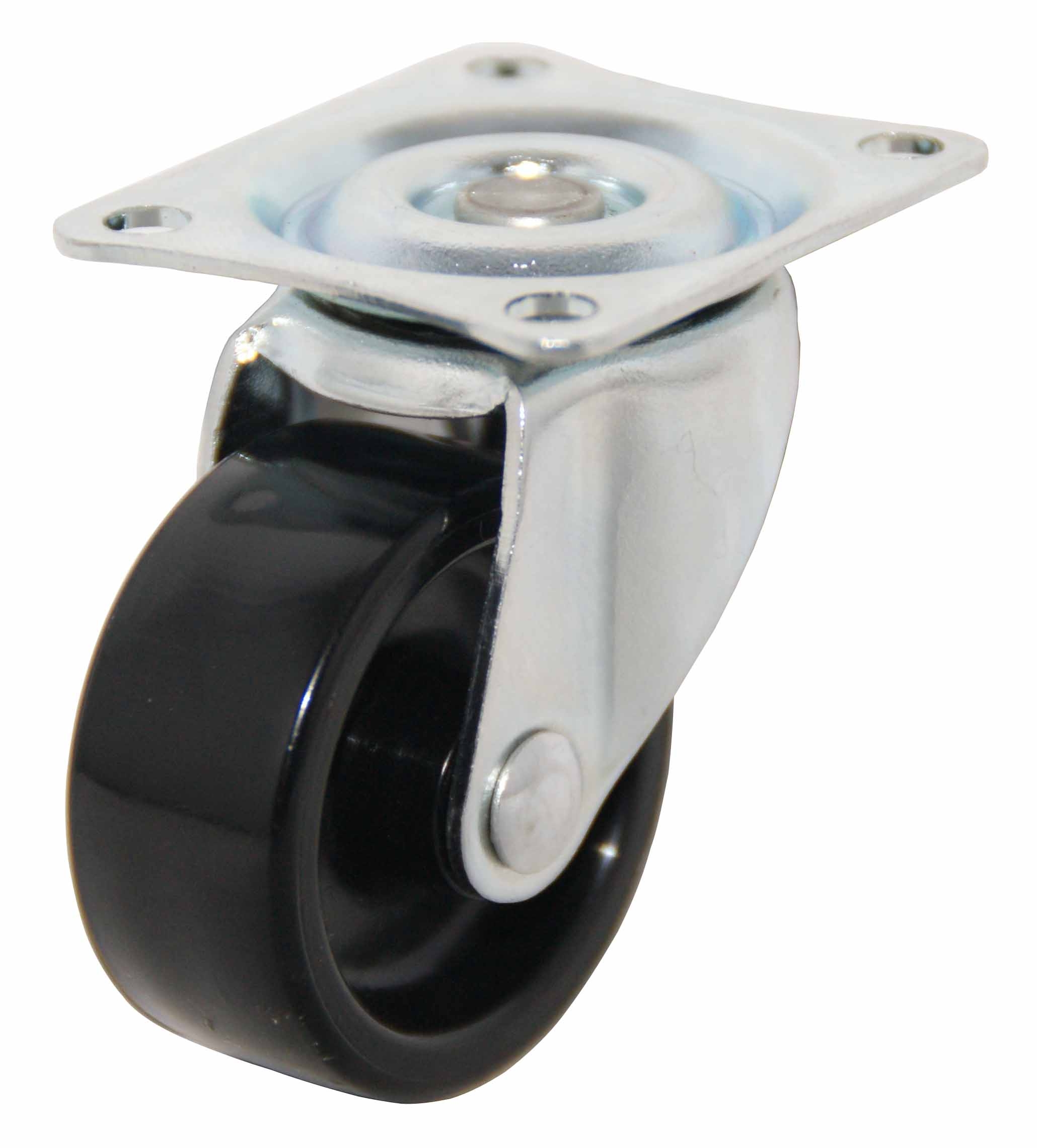

Product Name : Top Plate Swivel Caster
Product No : JSP1012
  • Load Capacity: 8-70 Kg Per Each Caster.
  • Swivel: Single Ball Bearing Raceway.
  • Application: Excellent for furniture and trolleys environment.
  • Finish: Zinc or Bright Chrome Plating.
  • Option: 2",21/2",3"Caster,Side Locking Brake( SB ) Available.
Inquiry
DIAMETER
INCH
( m/m )		 TREAD WIDTH
INCH
( m/m )		 WHEEL TYPE BEARING AXIE SIZE
INCH
( m/m )		 CASTER
 NUMBER
1
( 25 )		 1/2
( 12 )		 Soft Rubber (SR) Plain 3/16
( 4.5 )		 JSP1012SR
Hard Rubber (HR) Plain JSP1012HR
Polyurethane (U) Plain JSP1012U
Thermoplastic (TPR) Plain JSP1012TPR
Polypropylene (P) Plain JSP1012P
Nylon (N) Plain JSP1012N
LOAD
CAPCITY
 LBS ( Kgs )		 SWIVEL RADIUS
INCH
( m/m )		 OVERAL HEIGHT
INCH
( m/m )		 CASTER
 NUMBER
18 ( 8 ) 7/8
( 21.5 )		 13/8
( 35 )		 JSP1012SR
18 ( 8 ) JSP1012HR
22 ( 10 ) JSP1012U
22 ( 10 ) JSP1012TPR
22 ( 10 ) JSP1012P
22 ( 10 ) JSP1012N
DIAMETER
( m/m )		 TOP PLATE SIZE
( m/m )		 BOLT HOLE SPACING
( m/m )		 BOLT HOLE SIZE
( m/m )		 TOP PLATE NUMBER
25 30 x 35 23 x 28 4.2 J1
