Top Plate Swivel Caster

Top Plate Swivel Caster
Product Introduction
JSP1414

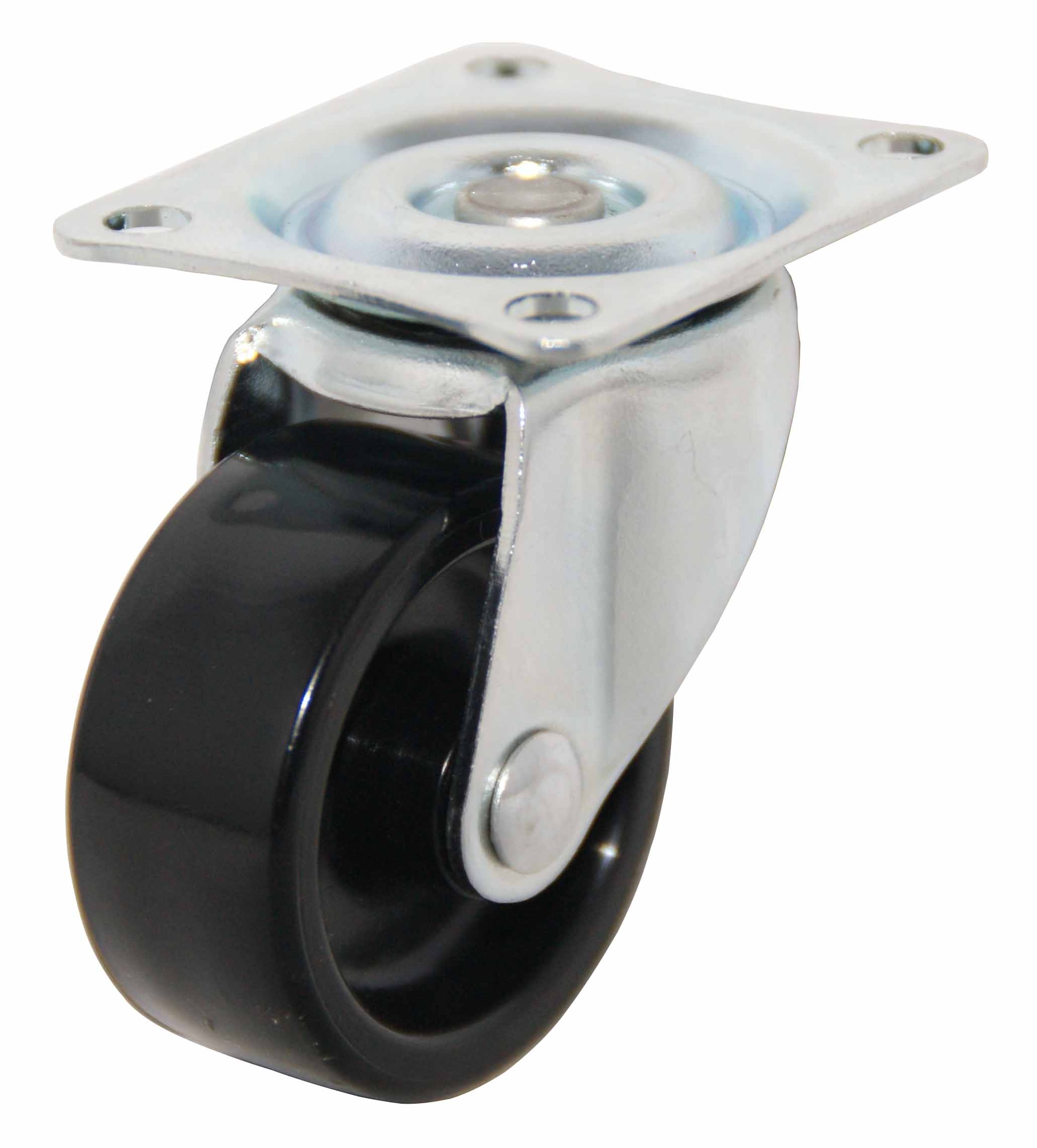

Product Name : Top Plate Swivel Caster
Product No : JSP1414
  • Load Capacity: 8-70 Kg Per Each Caster.
  • Swivel: Single Ball Bearing Raceway.
  • Application: Excellent for furniture and trolleys environment.
  • Finish: Zinc or Bright Chrome Plating.
  • Option: 2",21/2",3"Caster,Side Locking Brake( SB ) Available.
Inquiry
DIAMETER
INCH
( m/m )		 TREAD WIDTH
INCH
( m/m )		 WHEEL TYPE BEARING AXIE SIZE
INCH
( m/m )		 CASTER
 NUMBER
11/4
( 32 )		 9/16
 ( 14 )		 Soft Rubber (SR) Plain  3/16
 ( 5 )		 JSP1414SR
Hard Rubber (HR) Plain JSP1414HR
Polyurethane (U) Plain JSP1414U
Thermoplastic (TPR) Plain JSP1414TPR
Polypropylene (P) Plain JSP1414P
Nylon (N) Plain JSP1414N
LOAD
CAPCITY
LBS ( Kgs )		 SWIVEL RADIUS
INCH
( m/m )		 OVERAL HEIGHT
INCH
( m/m )		 CASTER
 NUMBER
22 ( 10 ) 11/18
 ( 27 )		 15/8
( 42 )		 JSP1414SR
26 ( 12 ) JSP1414HR
40 ( 18 ) JSP1414U
40 ( 18 ) JSP1414TPR
40 ( 18 ) JSP1414P
40 ( 18 ) JSP1414N
DIAMETER
( m/m )		 TOP PLATE SIZE
( m/m )		 BOLT HOLE SPACING
( m/m )		 BOLT HOLE SIZE
( m/m )		 TOP PLATE NUMBER
32 32 x 38 24 x 30 4.2 J2
