Product Introduction
LMF414

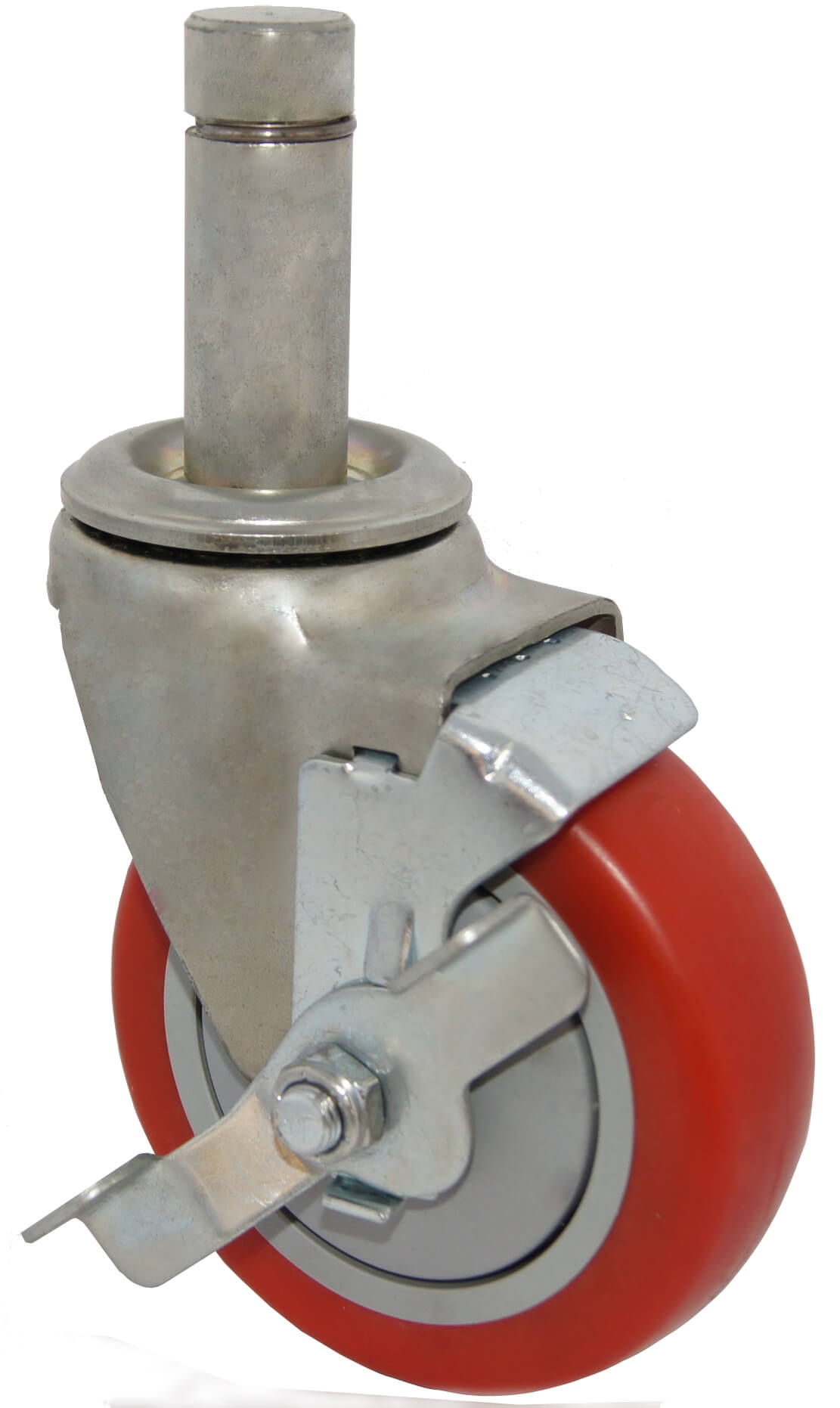

Product Name : Friction Ring Stem Swivel Caster
Product No : LMF414
  • Load Capacity: 150-300 LBS (68-136.2 Kgs) Each Caster.
  • Application: Excellent for Hospital Supply Industry, Trolleys and Food Service Equipment.
  • Finish: Corrosion-Resistant Zinc.
  • Option: Side Locking Brake( SB ).
Inquiry
DIAMETER
INCH
( m/m )		 TREAD WIDTH
INCH
( m/m )		 WHEEL TYPE BEARING AXIE SIZE
INCH
( m/m )		 CASTER
NUMBER
4
( 100 )		 11/4
( 32 )		 Soft Rubber (SR) Plain 3/8
( 9.5 )		 LMF414SR
Hard Rubber (HR) Plain LMF414HR
Polyurethane (U) Ball LMF414BU
Thermoplastic (TPR) Ball LMF414BTPR
Polypropylene (P) Plain LMF414P
Nylon (N) Plain LMF414N
Cast Iron (C) Plain LMF414C
LOAD
CAPACITY
LBS ( Kgs )		 SWIVEL RADIUS
INCH
( m/m )		 OVERALL HEIGHT
INCH
( m/m )		 CASTER
NUMBER
150 ( 68 )  35/8
( 92 )		 5
( 127 )		 LMF414SR
200 ( 90 )  LMF414HR
250 ( 113 ) LMF414BU
250 ( 113 ) LMF414BTPR
250 ( 113 ) LMF414P
250 ( 113 ) LMF414N
250 ( 113 ) LMF414C
FRICTION RING STEM SIZE
INCH		 STEM
NUMBER
3/4 x 23/16
 61
7/8 x 23/16
 62
