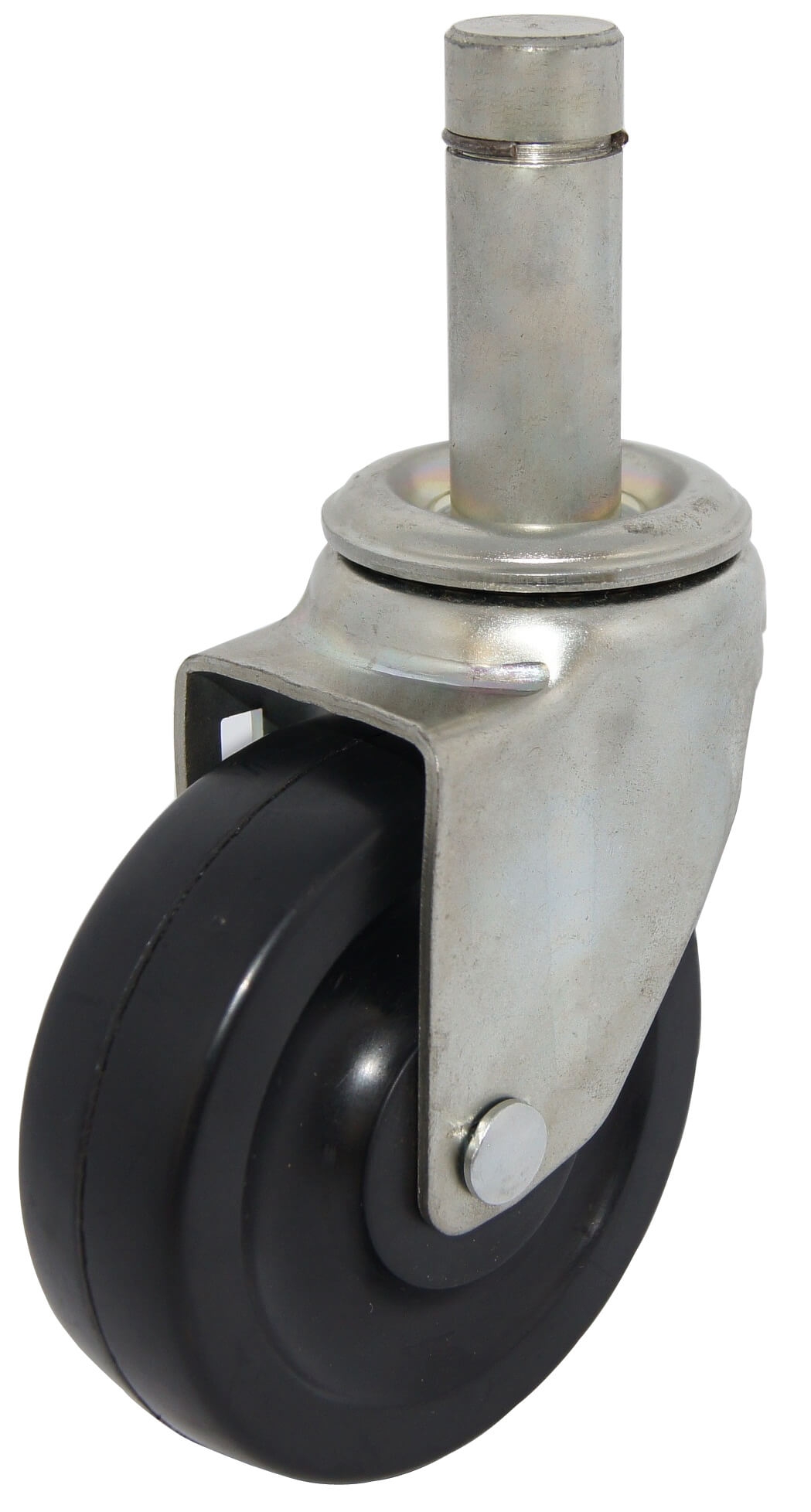

Friction Ring Stem Swivel Caster

Friction Ring Stem Swivel Caster
Product Introduction
LMF314
Product Name : Friction Ring Stem Swivel Caster
Product No : LMF314
  • Load Capacity: 150-300 LBS (68-136.2 Kgs) Each Caster.
  • Application: Excellent for Hospital Supply Industry, Trolleys and Food Service Equipment.
  • Finish: Corrosion-Resistant Zinc.
  • Option: Side Locking Brake( SB ).
Inquiry
DIAMETER
INCH
( m/m )		 TREAD WIDTH
INCH
( m/m )		 WHEEL TYPE BEARING AXIE SIZE
INCH
( m/m )		 CASTER
 NUMBER
3
( 75 )		 11/4
( 32 )		 Soft Rubber (SR) Plain 3/8
( 9.5 )		 LMF314SR
Hard Rubber (HR) Plain LMF314HR
Polyurethane (U) Ball LMF314BU
Thermoplastic (TPR) Ball LMF314BTPR
Polypropylene (P) Plain LMF314P
Nylon (N) Plain LMF314N
Cast Iron (C) Plain LMF314C
LOAD
CAPCITY
LBS ( Kgs )		 SWIVEL RADIUS
INCH
( m/m )		 OVERALL HEIGHT
INCH
( m/m )		 CASTER
  NUMBER
150 ( 68 ) 11/8
( 79 )		 41/8
( 105 )		 LMF314SR
200 ( 90 ) LMF314HR
220 ( 100 ) LMF314BU
220 ( 100 ) LMF314BTPR
220 ( 100 ) LMF314P
220 ( 100 ) LMF314N
250 ( 113 ) LMF314C
FRICTION RING STEM SIZE
INCH		 STEM
NUMBER
3/4 x 23/16
 61
7/8 x 23/16
 62
