Grip Neck Sockets Swivel Caster

Grip Neck Sockets Swivel Caster
Product Introduction
WS2020

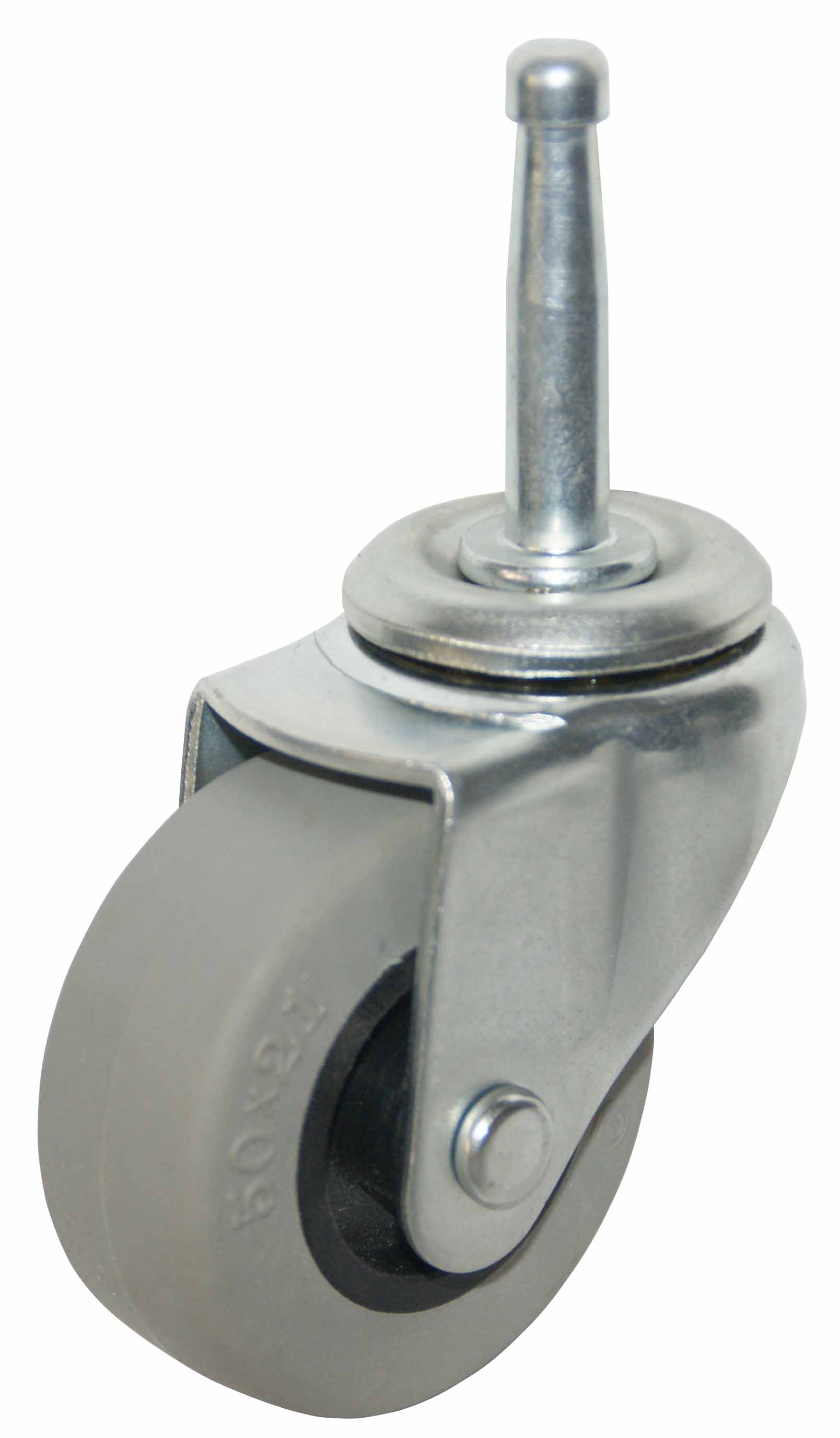

Product Name : Grip Neck Sockets Swivel Caster
Product No : WS2020
  • Load Capacity: 60-100 LBS (30-50 Kgs)Each Caster.
  • Application: Excellent for Office Furniture and Institutional Equipment and Hospital environment.
  • Finishs: Metal Thickness 2m/m,with Corrosion resistant  Zinc, Nickel, Chrome, Antique Plating.
  • Option: 2" Side Locking Brake( SB ) or Front Locking Brake( FB ).
Inquiry
DIAMETER
INCH
( m/m )		 TREAD WIDTH
INCH
( m/m )		 WHEEL TYPE BEARING AXIE SIZE
INCH
( m/m )		 CASTER
NUMBER
2
( 50 )		 13/16
( 21 )		 Soft Rubber (SR) Plain 1/4
( 6.3 )		 WS2020SR
Hard Rubber (HR) Plain WS2020HR
Polyurethane (U) Plain WS2020U
Polyurethane (U) Ball WS2020BU
Thermoplastic (TPR) Plain WS2020TPR
Thermoplastic (TPR) Ball WS2020BTPR
Polypropylene (P) Plain WS2020P
Nylon (N) Plain WS2020N
LOAD
CAPCITY
 LBS ( Kgs )		 SWIVEL RADIUS
INCH
( m/m )		 OVERALL HEIGHT
INCH
( m/m )		 CASTER
 NUMBER
80 ( 36.3 ) 17/8
( 47.6 )		 21/2
( 63 )		 WS2020SR
80 ( 36.3 ) WS2020HR
100 ( 45.4 ) WS2020U
100 ( 45.4 ) WS2020BU
100 ( 45.4 ) WS2020TPR
100 ( 45.4 ) WS2020BTPR
100 ( 45.4 ) WS2020P
100 ( 45.4 ) WS2020N
GRIP NECK SOCKETS SIZE
INCH		 STEM
NUMBER
5/16 x 11/2
 G1
