Product Introduction
LMT414
Product Name : Thread Stem Swivel Caster
Product No : LMT414
  • Load Capacity: 150-300 LBS (68-136.2 Kgs) Each Caster.
  • Application: Excellent for Hospital Supply Industry, Trolleys and Food Service Equipment.
  • Finish: Corrosion-Resistant Zinc.
  • Option: Side Locking Brake( SB ).
Inquiry
DIAMETER
INCH
( m/m )		 TREAD WIDTH
INCH
( m/m )		 TYPE BEARING AXIE SIZE
INCH
( m/m )		 CASTER
 NUMBER
4
( 100 )		 11/4

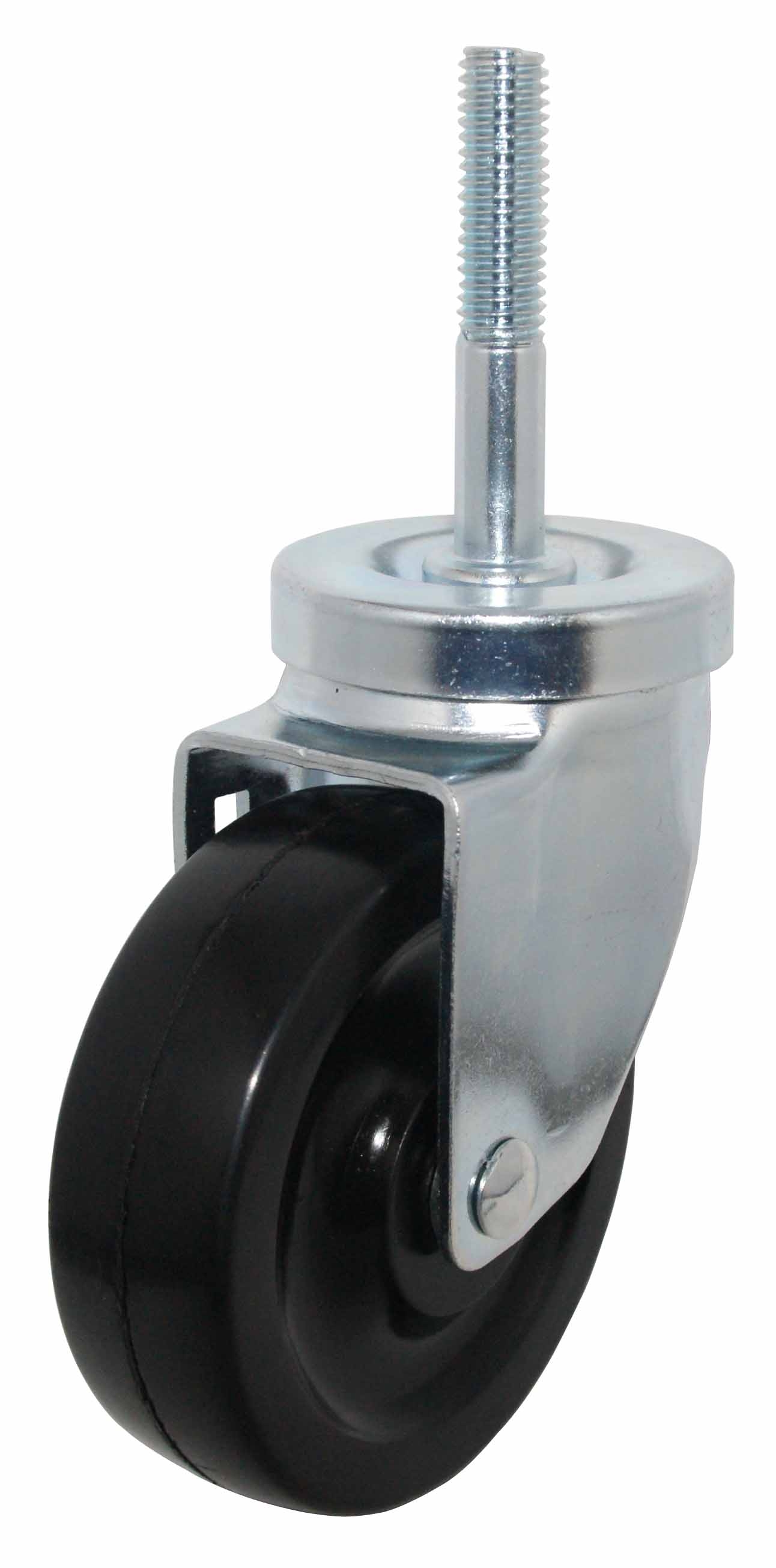

( 32 )		 Soft Rubber (SR) Plain 3/8
( 9.5 )		 LMT414SR
Hard Rubber (HR) Plain LMT414HR

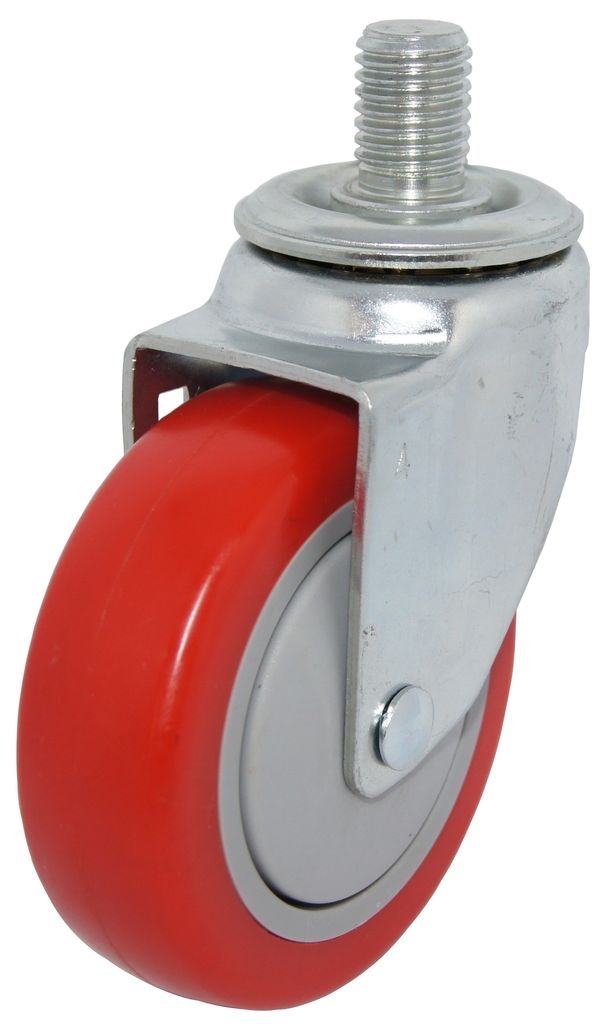

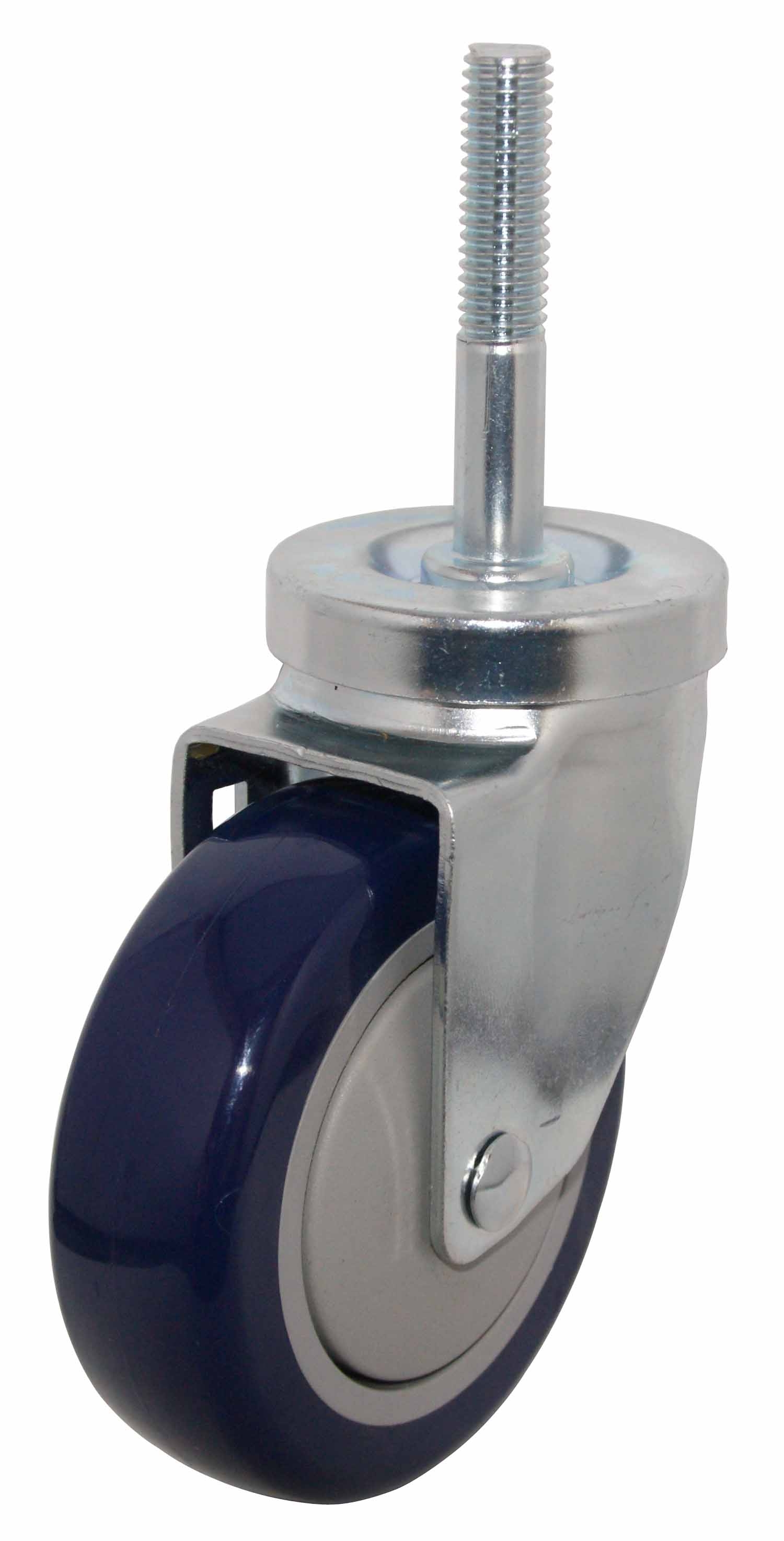

Polyurethane (U) Ball LMT414BU
Thermoplastic (TPR) Ball LMT414BTPR
Polypropylene (P) Plain LMT414P
Nylon (N) Plain LMT414N
Cast Iron (C) Plain LMT414C
LOAD
CAPCITY
LBS ( Kgs )		 SWIVEL RADIUS
INCH
( m/m )		 OVERALL HEIGHT
INCH
( m/m )		 CASTER
  NUMBER
150 ( 68 )  35/8
( 92 )		  5
( 127 )		 LMT414SR
200 ( 90)  LMT414HR
250 ( 113 ) LMT414BU
250 ( 113 ) LMT414BTPR
250 ( 113 ) LMT414P
250 ( 113 ) LMT414N
250 ( 113 ) LMT414C
THREAD STEM SIZE
INCH		 STEM
NUMBER
1/2 - 13 x 1 D21
1/2 - 13 x 11/2
 D22
