Product Introduction
WT5025

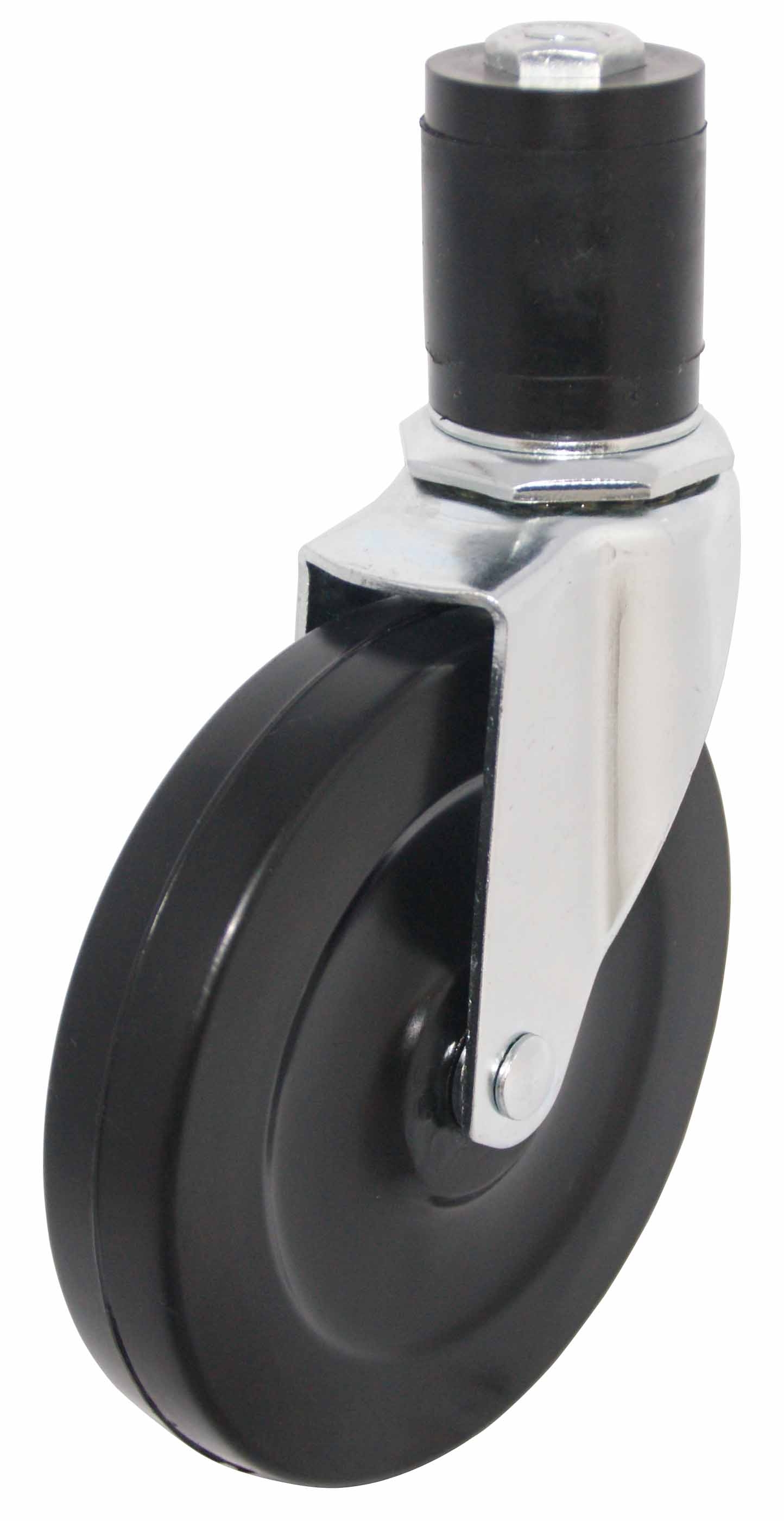

Product Name : Thread Stem Swivel Caster
Product No : WT5025
  • Load Capacity: 100-132LBS(45.4-60.1Kgs)Each caster.
  • Application: Excellent for Institution Equipment and Furniture and Hospital environment and Food Service Equipment and Tool Boxes.
  • Finish: Corrosion Resistant Zinc.

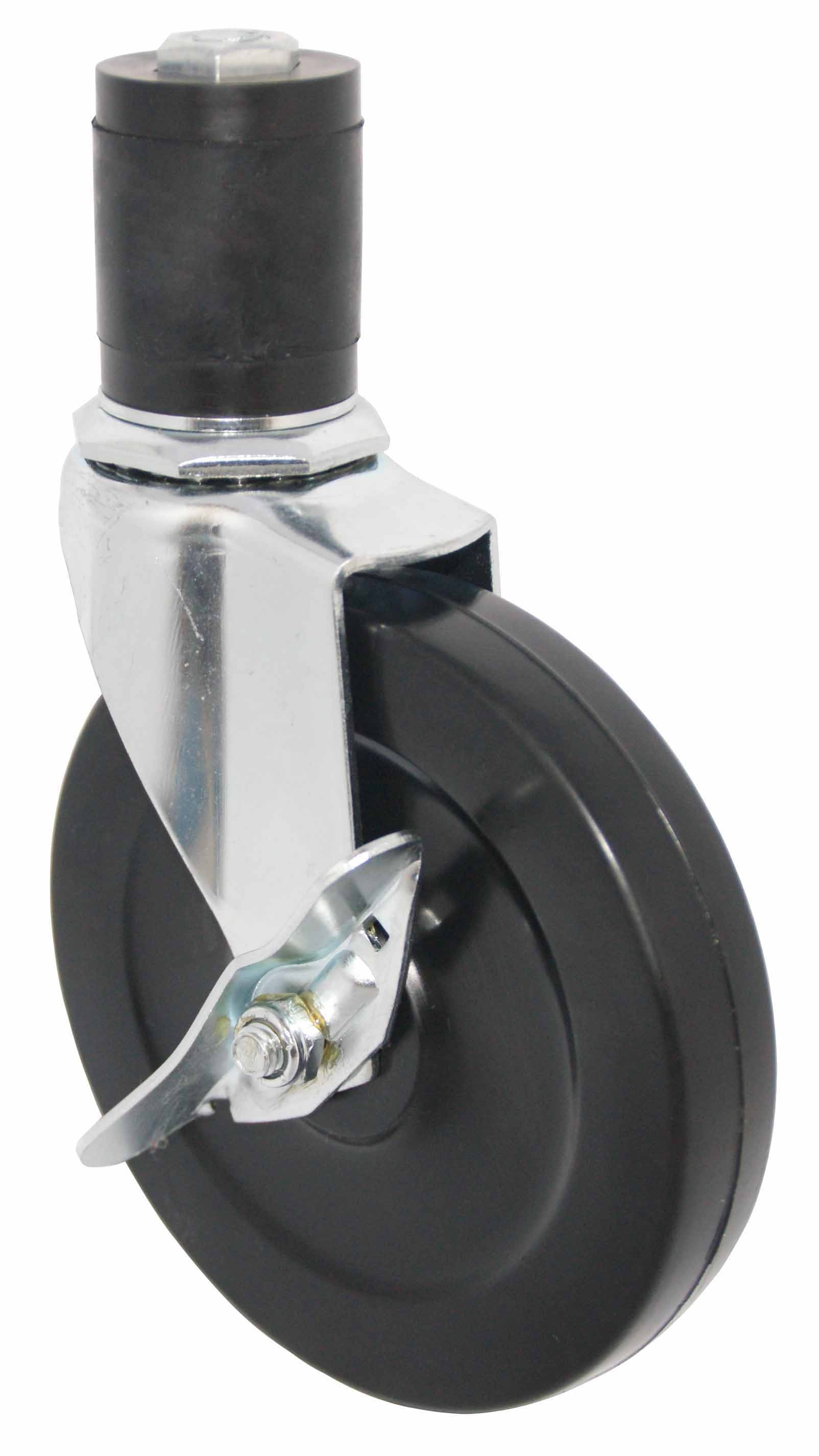

  • Option: Side Locking Brake( SB ).
Inquiry
TREAD WIDTH
INCH
( m/m )		 WHEEL TYPE BEARING AXIE SIZE
INCH
( m/m )		 CASTER
 NUMBER
1
( 25 )		 Soft Rubber (SR) Plain  5/16
( 7.9 )		 WT5025SR
Hard Rubber (HR) Plain WT5025HR
Polyurethane (U) Plain WT5025U
Thermoplastic (TPR) Plain WT5025TPR
Polypropylene (P) Plain WT5025P
Nylon (N) Plain WT5025N
LOAD
CAPCITY
 LBS ( Kgs )		 SWIVEL RADIUS
INCH
( m/m )		 OVERAL HEIGHT
INCH
( m/m )		 CASTER
 NUMBER
120 ( 54.5 ) 33/4
( 95 )		 513/16
( 148 )		 WT5025SR
120 ( 54.5 ) WT5025HR
132 ( 60 ) WT5025U
132 ( 60 ) WT5025TPR
132 ( 60 ) WT5025P
132 ( 60 ) WT5025N
THREAD STEM SIZE
INCH		 STEM
  NUMBER
1/2 - 13 x 1 D21
1/2 - 13 x 11/2
 D22
M12xP1.75-11/2
 D23
