Friction Ring Stem Swivel Caster

Friction Ring Stem Swivel Caster
Product Introduction
WF2520

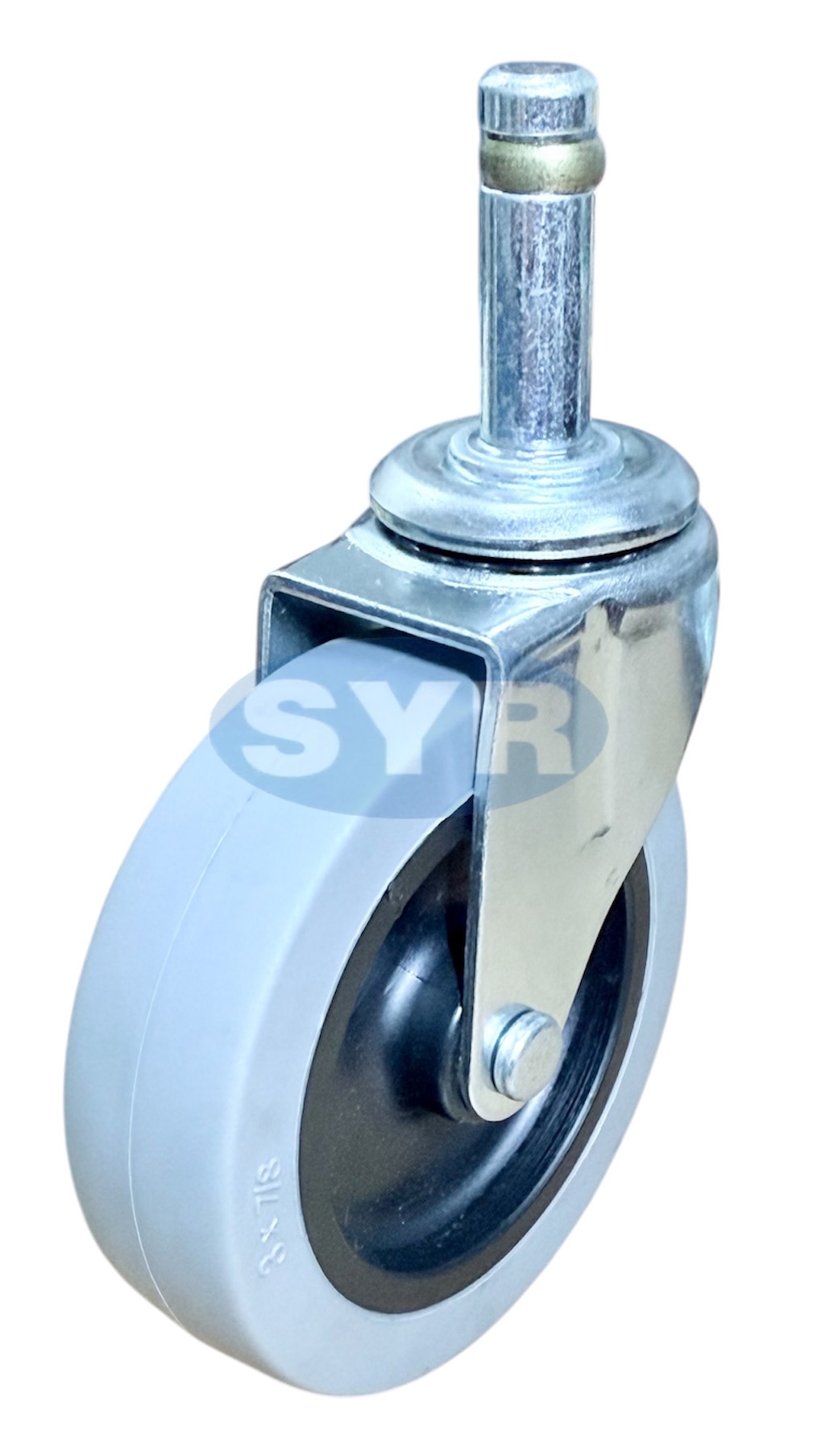

Product Name : Friction Ring Stem Swivel Caster
Product No : WF2520
  • Load Capacity: 60-100 LBS (30-50 Kgs)Each Caster.
  • Application: Excellent for Office Furniture and Institutional Equipment and Hospital environment.
  • Finishs: Metal Thickness 2m/m,with Corrosion resistant  Zinc, Nickel, Chrome, Antique Plating.
  • Option: 2" Side Locking Brake( SB ) or Front Locking Brake( FB ).
Inquiry
DIAMETER
INCH
( m/m )		 TREAD WIDTH
INCH
( m/m )		 WHEEL TYPE BEARING AXIE SIZE
INCH
( m/m )		 CASTER
 NUMBER
21/2
( 63 )		 13/16
( 21 )		 Soft Rubber (SR) Plain 1/4
( 6.3 )		 WF2520SR
Hard Rubber (HR) Plain WF2520HR
Polyurethane (U) Plain WF2520U
Thermoplastic (TPR) Plain WF2520TPR
Polypropylene (P) Plain WF2520P
Nylon (N) Plain WF2520N
LOAD
CAPACITY
 LBS ( Kgs )		 SWIVEL RADIUS
INCH
( m/m )		 OVERALL HEIGHT
INCH
( m/m )		 CASTER
 NUMBER
80 ( 36.3 ) 23/16
( 56 )		 31/16
( 78 )		 WF2520SR
80 ( 36.3 ) WF2520HR
100 ( 45.4 ) WF2520U
100 ( 45.4 ) WF2520TPR
100 ( 45.4 ) WF2520P
100 ( 45.4 ) WF2520N
FRICTION RING STEM SIZE
INCH		 STEM
NUMBER
7/16 x 7/8 22
7/16 x 1 25
7/16 x 13/8
 35
With Brass Ring or Steel Ring Stem Other Size Available
