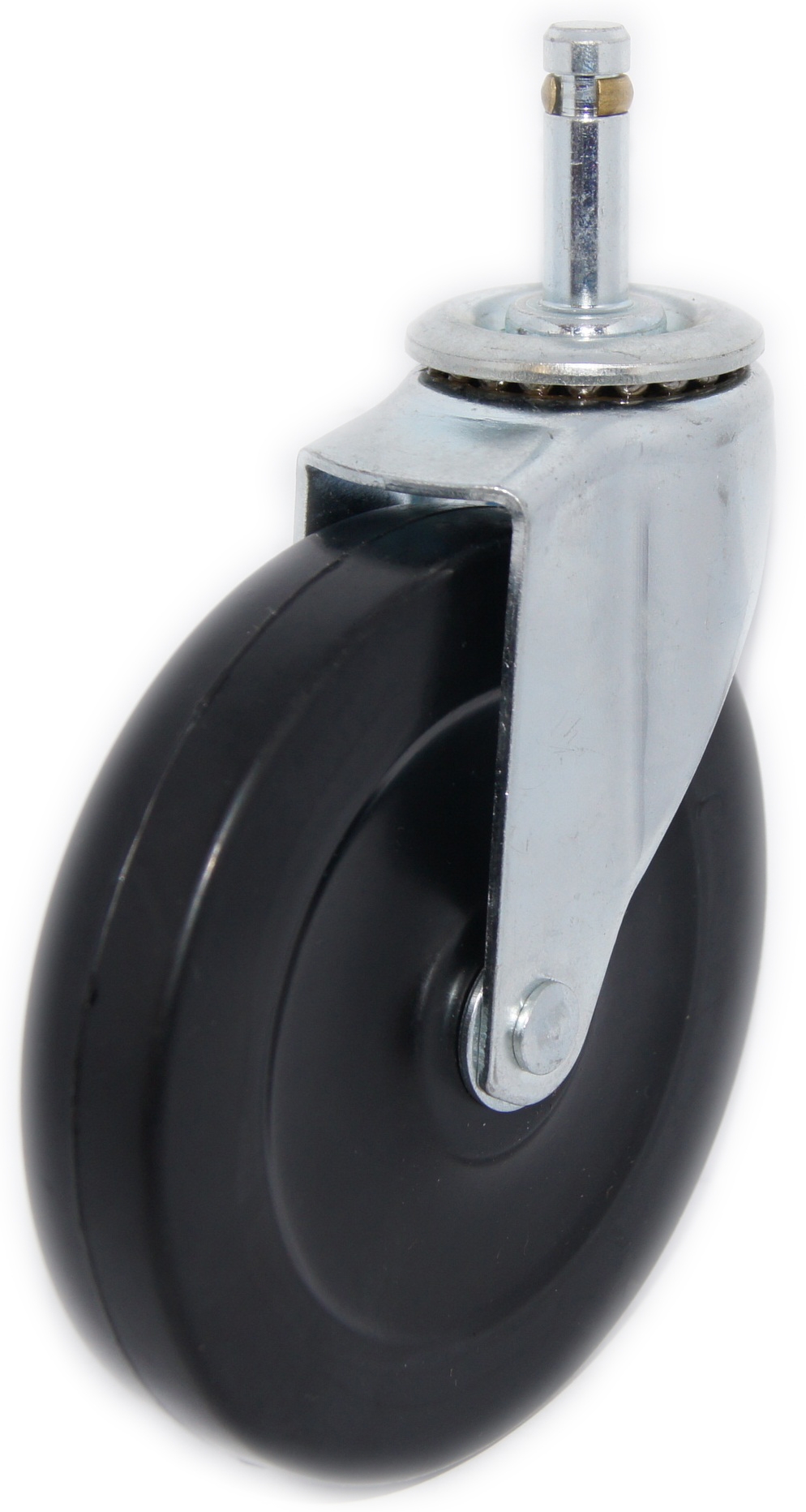

Friction Ring Stem Swivel Caster

Friction Ring Stem Swivel Caster
Product Introduction
WF2525
Product Name : Friction Ring Stem Swivel Caster
Product No : WF2525
  • Load Capacity: 100-132LBS(45.4-60.1Kgs)Each caster.
  • Application: Excellent for Institution Equipment and Furniture and Hospital environment and Food Service Equipment and Tool Boxes.
  • Finish: Corrosion Resistant Zinc.
  • Option: Side Locking Brake( SB ).
Inquiry
DIAMETER
INCH
( m/m )		 TREAD WIDTH
INCH
( m/m )		 WHEEL TYPE BEARING AXIE SIZE
INCH
( m/m )		 CASTER
 NUMBER
21/2
( 63 )		 1
( 25 )		 Soft Rubber (SR) Plain 5/16
( 7.9 )		 WF2525SR
Hard Rubber (HR) Plain WF2525HR
Polyurethane (U) Plain WF2525U
Thermoplastic (TPR) Plain WF2525TPR
Polypropylene (P) Plain WF2525P
Nylon (N) Plain WF2525N
LOAD
 CAPACITY
  LBS ( Kgs )		 SWIVEL RADIUS
INCH
( m/m )		 OVERALL HEIGHT
INCH
( m/m )		 CASTER
 NUMBER
100 ( 45.4 ) 23/8
( 60 )		 33/8
( 86 )		 WF2025SR
100 ( 45.4 ) WF2025HR
120 ( 54.5 ) WF2025U
120 ( 54.5 ) WF2025TPR
120 ( 54.5 ) WF2025P
120 ( 54.5 ) WF2025N
FRICTION RING STEM SIZE
INCH		 STEM
NUMBER
7/16 x 13/8
 35
7/16 x 11/2
 38
7/16 x 129/32
 49
With Brass Ring stem Other Size Available
