Top Plate Swivel Caster

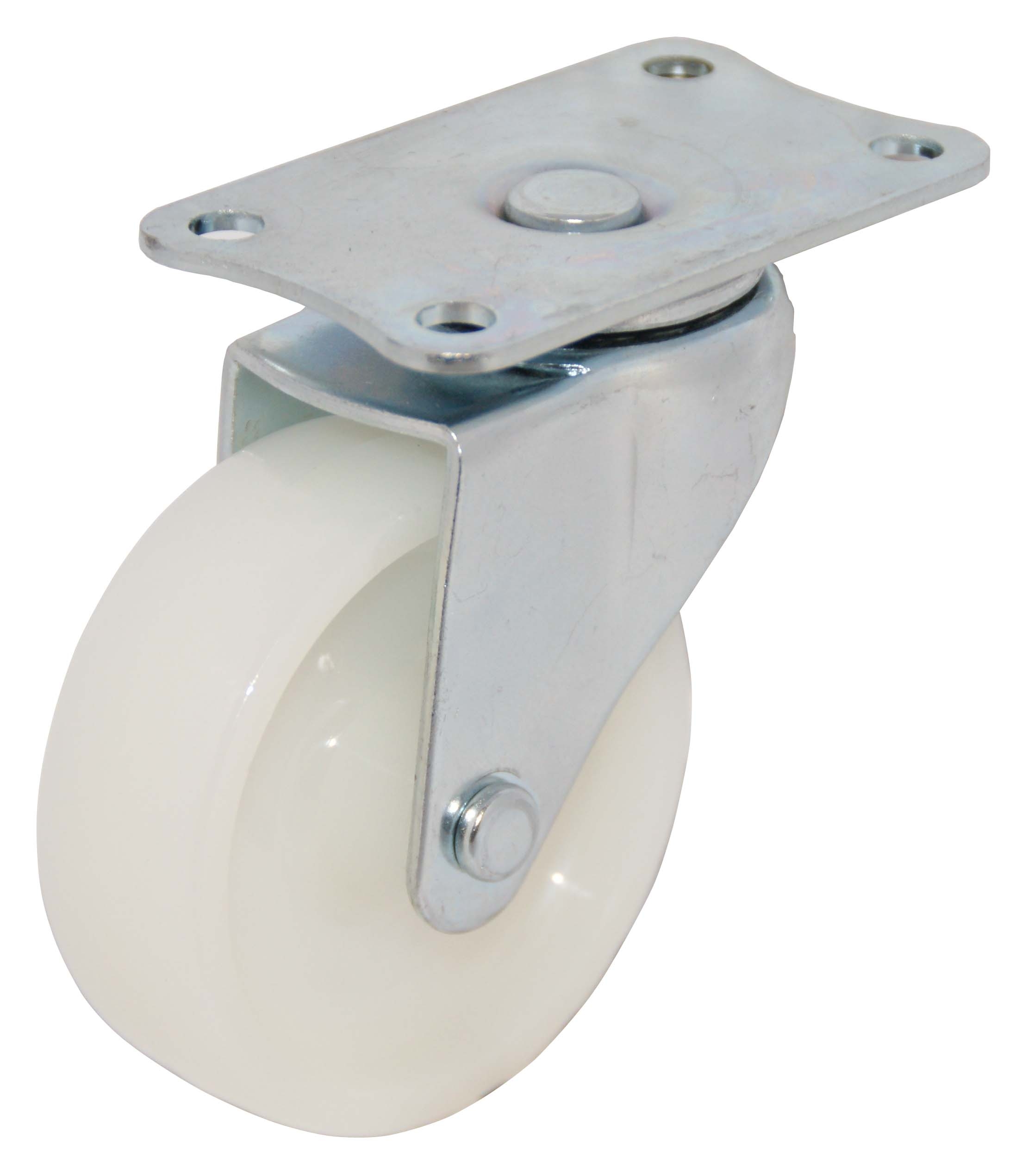

WP2520N-4

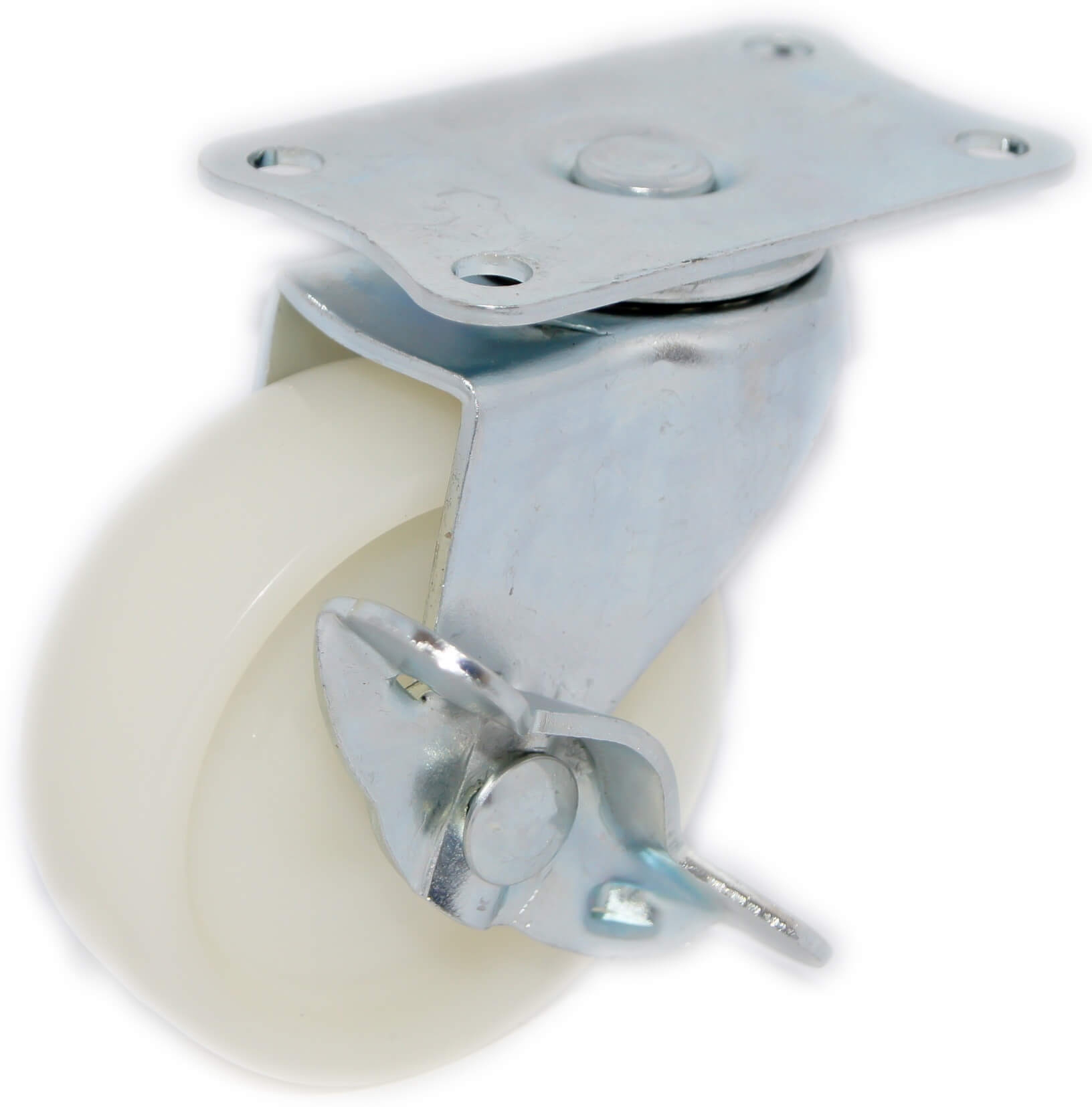

WP2520N-SB-4
Product Introduction
WP2520
Product Name : Top Plate Swivel Caster
Product No : WP2520
  • Load Capacity: 60-100 LBS (30-50 Kgs)Each Caster.
  • Application: Excellent for Office Furniture and Institutional Equipment and Hospital environment.
  • Finishs: Metal Thickness 2m/m,with Corrosion resistant Zinc, Nickel, Chrome, Antique Plating.
  • Option: Side Locking Brake( SB ) or Front Locking Brake( FB ).
Inquiry
DIAMETER
INCH
( m/m )		 TREAD WIDTH
INCH
( m/m )		 WHEEL TYPE BEARING AXIE SIZE
INCH
( m/m )		 CASTER   NUMBER
21/2
( 63 )		 13/16
( 21 )		 Soft Rubber (SR) Plain 1/4
( 6.3 )		 WP2520SR
Hard Rubber (HR) Plain WP2520HR
Polyurethane (U) Plain WP2520U
Thermoplastic (TPR) Plain WP2520TPR
Polypropylene (P) Plain WP2520P
Nylon (N) Plain WP2520N

LOAD
CAPCITY
 LBS ( Kgs )		 SWIVEL RADIUS
INCH
( m/m )		 OVERALL HEIGHT
INCH
( m/m )		 CASTER
NUMBER
80 ( 36.3 ) 23/16
( 56 )		 31/8
( 80 )		 WP2520SR
80 ( 36.3 ) WP2520HR
100 ( 45.4 ) WP2520U
100 ( 45.4 ) WP2520TPR
100 ( 45.4 ) WP2520P
100 ( 45.4 ) WP2520N
TOP PLATE SIZE
m/m		 BOLT HOLE SPACING
m/m		 BOLT HOLE SIZE
m/m		 TOP PLATE NUMBER
31 x 51 21 x 40 5 1
33 x 57.2 19 x 45 5 2
40 x 68 24 x 54.5 6.8 3
43 x 70 28 x 56 6.5 4
45 x 52 32 x 40 5 5
45 x 76 27 x 57 7.3 6
47 x 60 35 x 46 6.8 7
38 x 38 28 x 28 5 8
42 x 42 30 x 30 6 9
50 x 50 38 x 38 6.2 10
62 x 62 44.5 x 44.5 6 11
