Product Introduction
WP3020

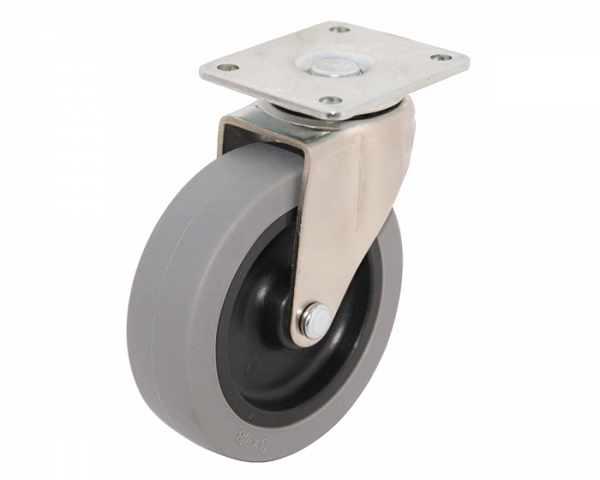

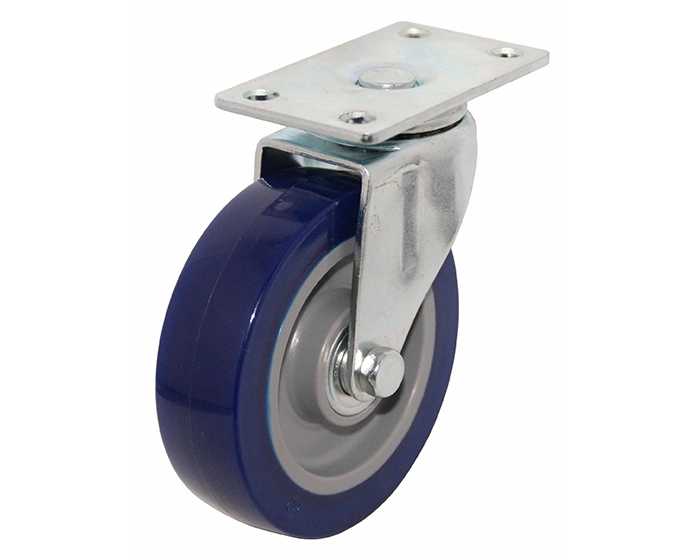

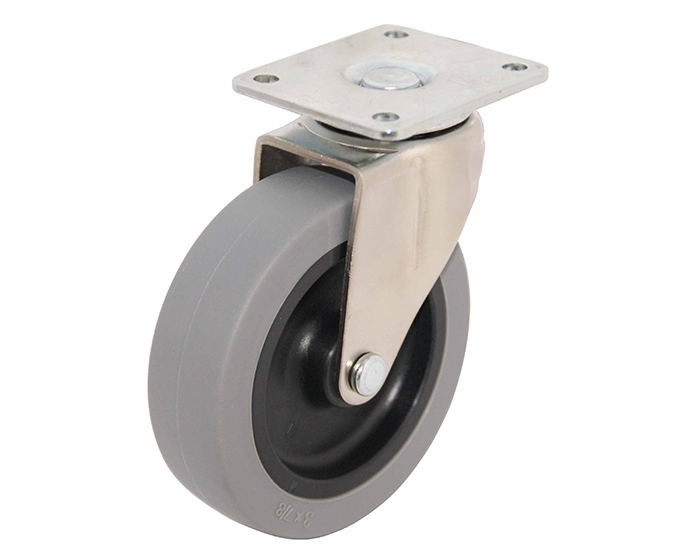

Product Name : Top Plate Swivel Caster
Product No : WP3020
  • Load Capacity: 60-100 LBS (30-50 Kgs)Each Caster.
  • Application: Excellent for Office Furniture and Institutional Equipment and Hospital environment.
  • Finishs: Metal Thickness 2m/m,with Corrosion resistant Zinc, Nickel, Chrome, Antique Plating.

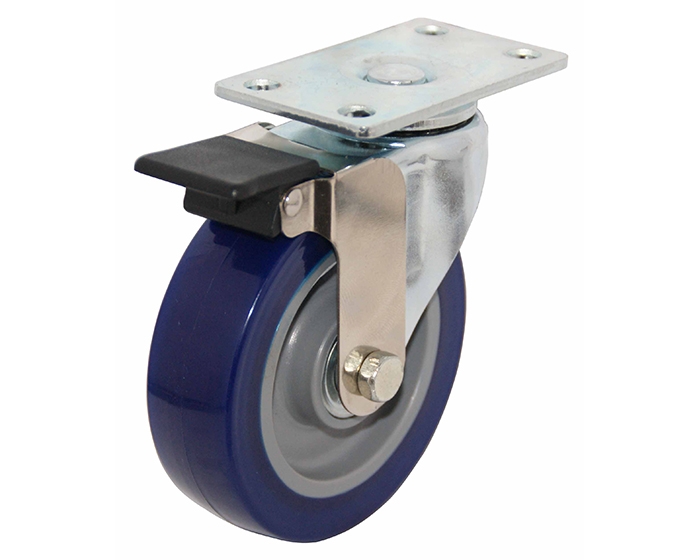

  • Option: Side Locking Brake( SB ) or Front Locking Brake( FB ).
Inquiry
DIAMETER
INCH
( m/m )		 TREAD WIDTH
INCH
( m/m )		 WHEEL TYPE BEARING AXIE SIZE
INCH
( m/m )		 CASTER
 NUMBER
3
( 75 )		 13/16
 ( 21 )		 Soft Rubber (SR) Plain 1/4
( 6.3 )		 WP3020SR
Hard Rubber (HR) Plain WP3020HR
Polyurethane (U) Plain WP3020U
Polyurethane (U) Ball WP3020BU
Thermoplastic (TPR) Plain WP3020TPR
Thermoplastic (TPR) Ball WP3020BTPR
Polypropylene (P) Plain WP3020P
Nylon (N) Plain WP3020N

LOAD
   CAPCITY
LBS ( Kgs )		 SWIVEL RADIUS
INCH
( m/m )		 OVERALL HEIGHT
INCH
( m/m )		 CASTER
 NUMBER
80 ( 36.3 ) 29/16
( 65 )		 39/16
 ( 90 )		 WP3020SR
80 ( 36.3 ) WP3020HR
100 ( 45.4 ) WP3020U
100 ( 45.4 ) WP3020BU
100 ( 45.4 ) WP3020TPR
100 ( 45.4 ) WP3020BTPR
100 ( 45.4 ) WP3020P
100 ( 45.4 ) WP3020N
TOP PLATE SIZE
m/m		 BOLT HOLE SPACING
m/m		 BOLT HOLE SIZE
m/m		 TOP PLATE NUMBER
31 x 51 21 x 40 5 1
33 x 57.2 19 x 45 5 2
40 x 68 24 x 54.5 6.8 3
43 x 70 28 x 56 6.5 4
45 x 52 32 x 40 5 5
45 x 76 27 x 57 7.3 6
47 x 60 35 x 46 6.8 7
38 x 38 28 x 28 5 8
42 x 42 30 x 30 6 9
50 x 50 38 x 38 6.2 10
62 x 62 44.5 x 44.5 6 11
