Product Introduction
WP4025

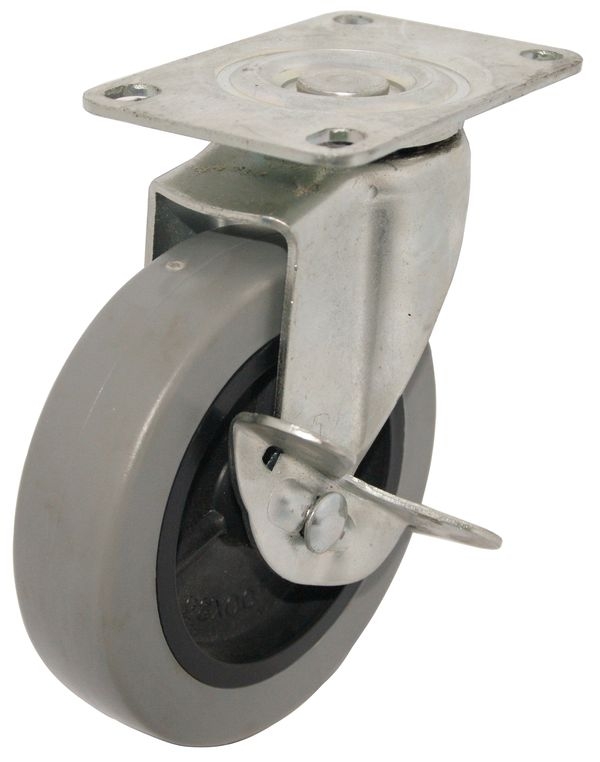

Product Name : Top Plate Swivel Caster
Product No : WP4025
  • Load Capacity: 100-132LBS(45.4-60.1Kgs)Each caster.
  • Application: Excellent for Institution Equipment and Furniture and Hospital environment and Food Service Equipment and Tool Boxes.
  • Finish: Corrosion Resistant Zinc.
  • Option: Side Locking Brake( SB ).
Inquiry
DIAMETER
INCH
( m/m )		 TREAD WIDTH
INCH
( m/m )		 WHEEL TYPE BEARING AXIE SIZE
INCH
( m/m )		 CASTER
  NUMBER
4
( 100 )		 1
( 25 )		 Soft Rubber (SR) Plain 5/16
( 7.9 )		 WP4025SR
Hard Rubber (HR) Plain WP4025HR
Polyurethane (U) Plain WP4025U
Thermoplastic (TPR) Plain WP4025TPR
Polypropylene (P) Plain WP4025P
Nylon (N) Plain WP4025N
LOAD
CAPCITY
     LBS ( Kgs )		 SWIVEL RADIUS
INCH
( m/m )		 OVERALL HEIGHT
INCH
( m/m )		 CASTER
  NUMBER
110 ( 50 ) 31/4
( 83 )		 213/16
( 122 )		 WP4025SR
110 ( 50 ) WP4025HR
120 ( 54.5 ) WP4025U
120 ( 54.5 ) WP4025TPR
120 ( 54.5 ) WP4025P
120 ( 54.5 ) WP4025N
TOP PLATE SIZE
INCH
( m/m )		 BOLT HOLE SPACING
INCH
( m/m )		 BOLT HOLE SIZE
( m/m )		 TOP PLATE NUMBER
25/16 x 23/4
( 58 x 70 )		 111/16 x 23/16
( 42 x 55 )		 8.8 A1
25/16 x 23/16
   ( 58 x 100 )     		 19/16x 31/4
( 40 x 82 )		 8.8 A2
23/8 x 35/8
( 60 x 92 )		 13/4 x 27/8 - 3
( 44.5 x 73 - 75 )		 8.5 41
23/4 x 33/4
( 70 x 95 )		 13/4 x 25/8 - 3
( 44.5 x 67 - 75 )		 8.5 42
