Product Introduction
WW3025

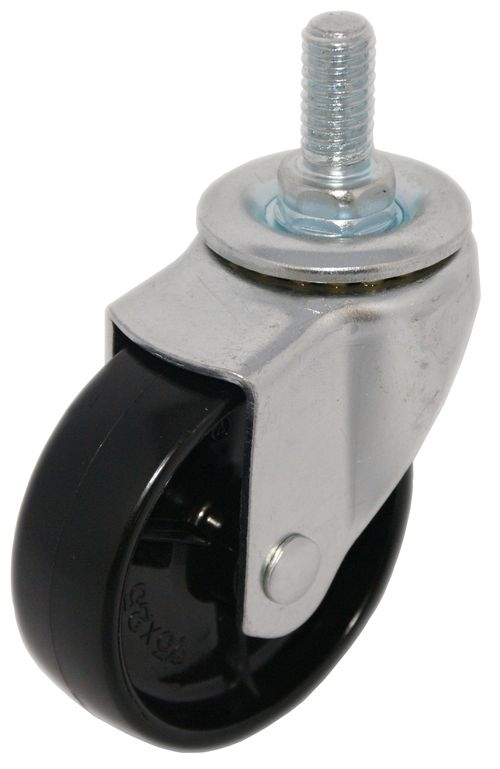

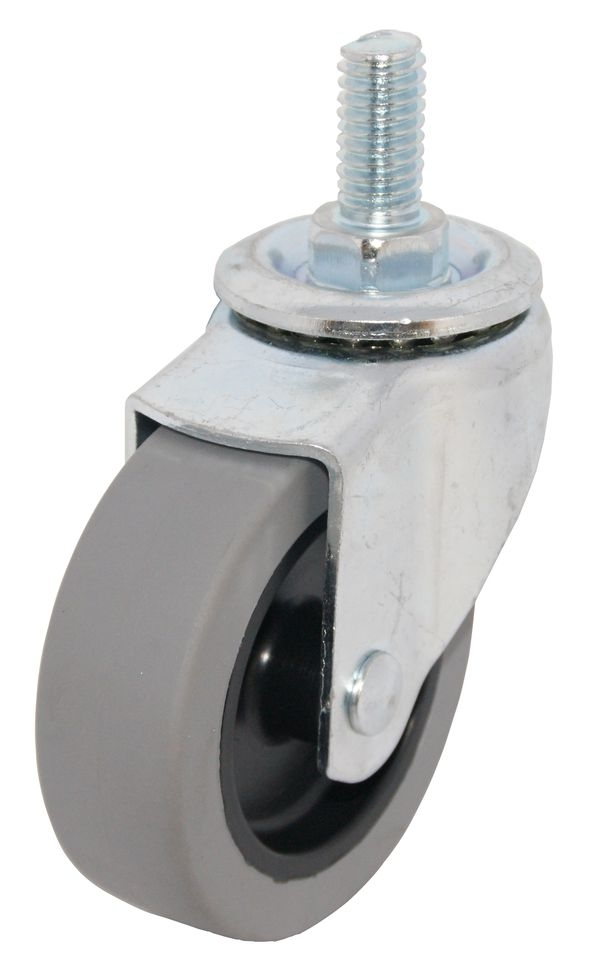

Product Name : Thread Stem Swivel Caster With HEX
Product No : WW3025
  • Load Capacity: 100-132LBS(45.4-60.1Kgs)Each caster.
  • Application: Excellent for Institution Equipment and Furniture and Hospital environment and Food Service Equipment and Tool Boxes.
  • Finish: Corrosion Resistant Zinc.

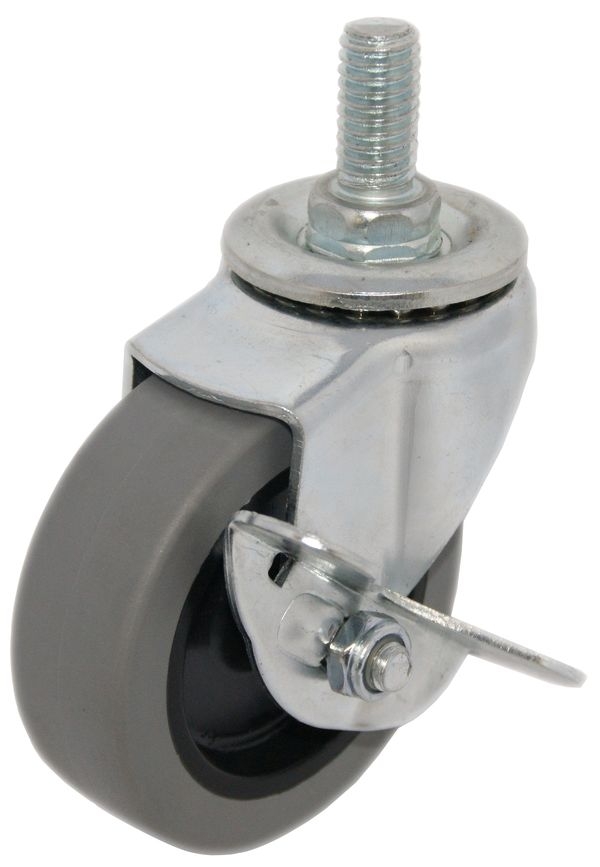

  • Option: Side Locking Brake( SB ).
Inquiry
DIAMETER
INCH
( m/m )		 TREAD WIDTH
INCH
( m/m )		 WHEEL TYPE BEARING AXIE SIZE
INCH
( m/m )		 CASTER
 NUMBER
3
( 75 )		 1
( 25 )		 Soft Rubber (SR) Plain 5/16
( 7.95 )		 WW3025SR
Hard Rubber (HR) Plain WW3025HR
Polyurethane (U) Plain WW3025U
Polyurethane (U) Ball WW3025BU

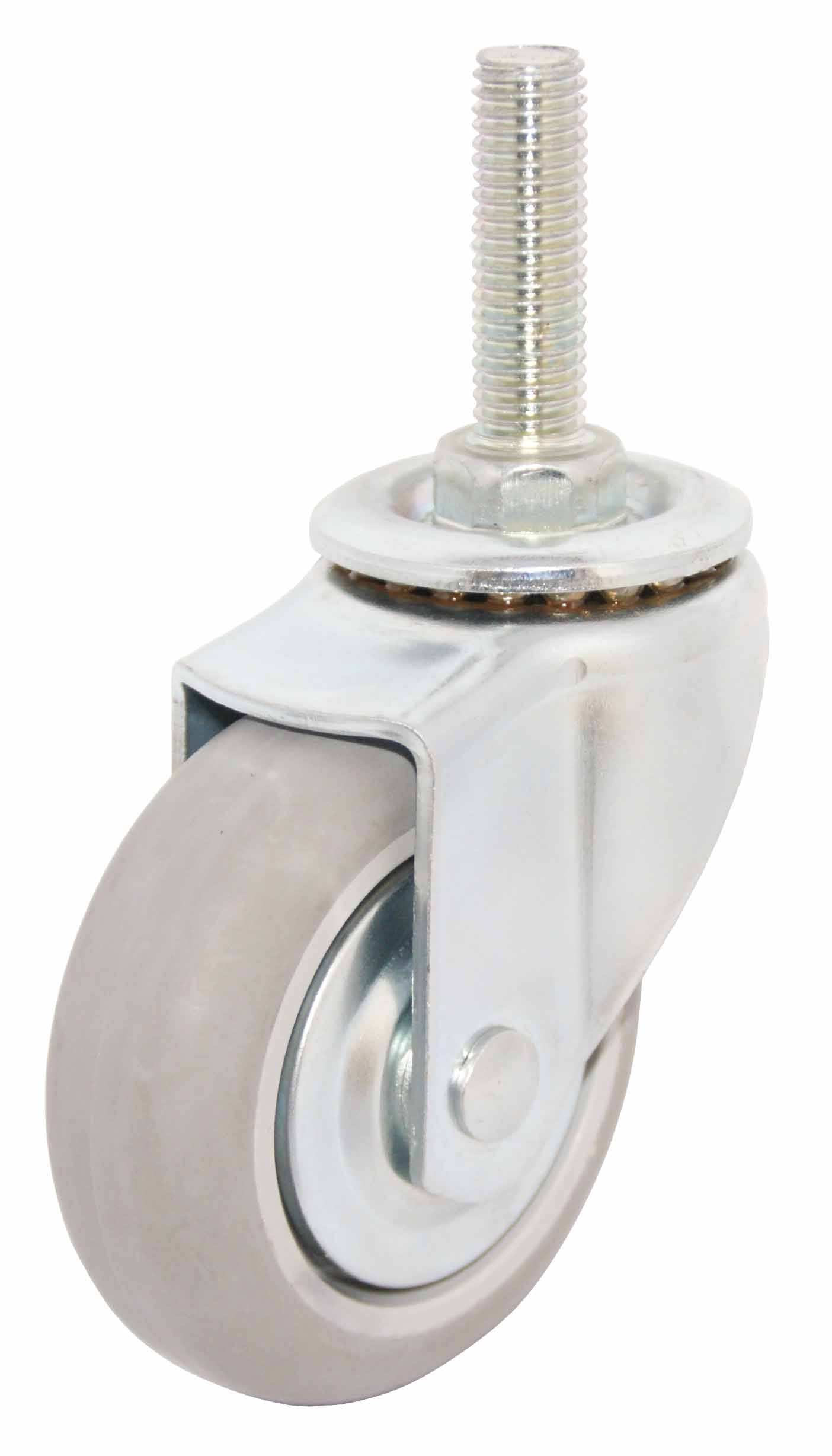

Thermoplastic (TPR) Plain WW3025TPR
Thermoplastic (TPR) Ball WW3025BTPR
Polypropylene (P) Plain WW3025P
Nylon (N) Plain WW3025N
Cast Iron (C) Plain WW3025C
LOAD
CAPCITY
LBS ( Kgs )		 SWIVEL RADIUS
INCH
( m/m )		 OVERAL HEIGHT
INCH
( m/m )		 CASTER
NUMBER
100 ( 45.4 ) 23/8
( 66 )		 35/8
 ( 92 )		 WW3025SR
100 ( 45.4 ) WW3025HR
120 ( 54.5 ) WW3025U
120 ( 54.5 ) WW3025BU
120 ( 54.5 ) WW3025TPR
120 ( 54.5 ) WW3025BTPR
120 ( 54.5 ) WW3025P
120 ( 54.5 ) WW3025N
130 ( 59 ) WW3025C
THREAD STEM SIZE
INCH		 STEM
 NUMBER
3/8 - 16 x 1 H5
1/2 - 12 x 1 H20
1/2 - 13 x 1 H21
1/2 - 13 x 11/2
 H22
M12xP1.75-19/16
 H24
